Cylinder Head Cover (RH) Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head cover bolts in the order shown?

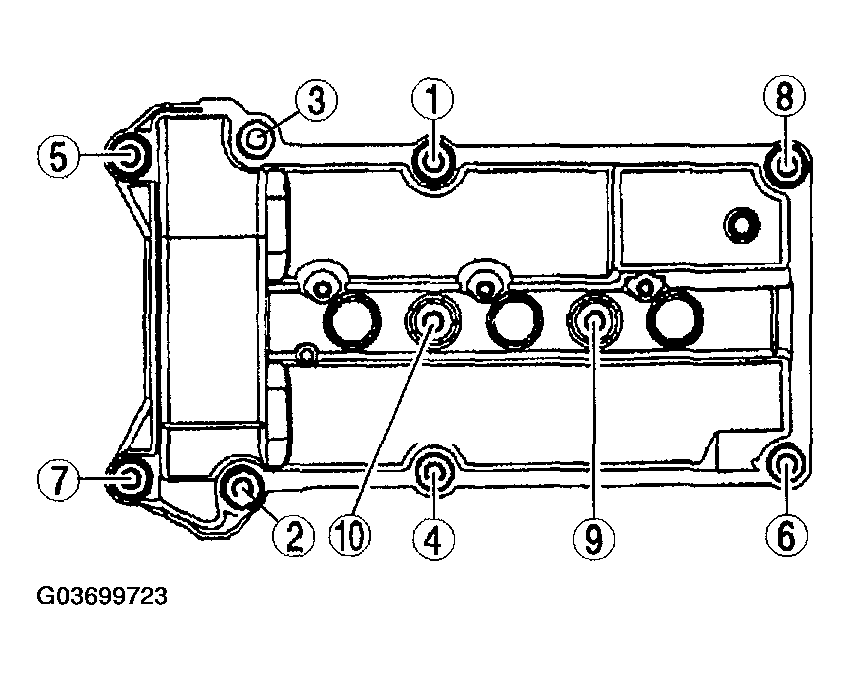

    Fig 1: Identifying Removal Sequence Of RH Cylinder Head Cover Bolts
    G03699723Courtesy of MAZDA MOTORS CORP.
