Cylinder Head Cover (LH) Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply silicone sealant to the mating faces as shown.
  2. Install the cylinder head cover with a new gasket.
    Fig 1: Applying Silicone Sealant To Mating Faces
    G03699768Courtesy of MAZDA MOTORS CORP.
  3. Tighten the bolts in the order shown.

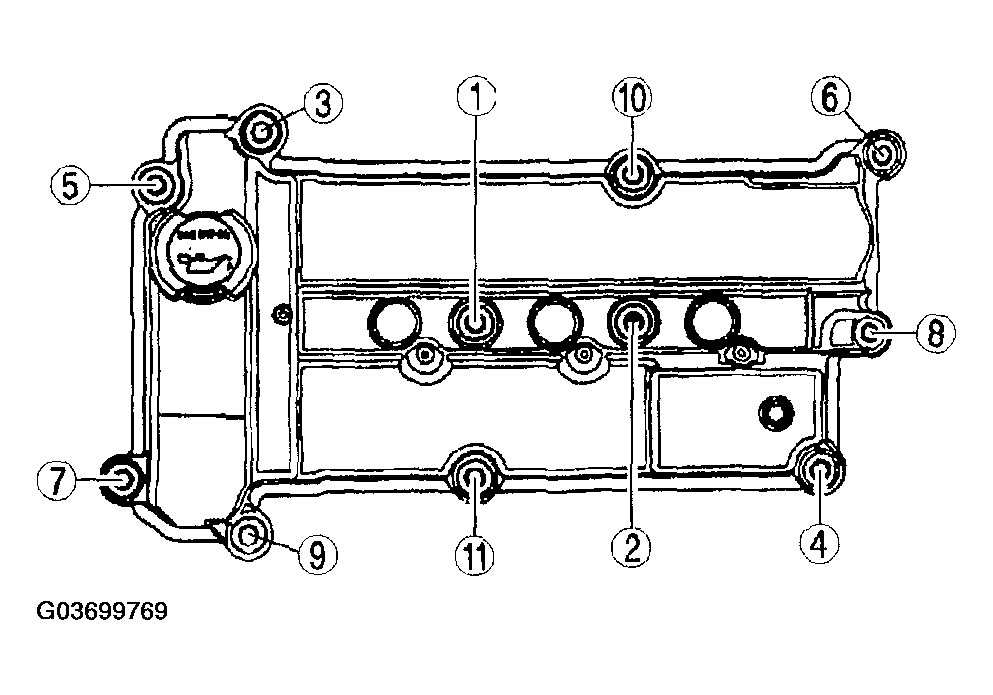

    Fig 2: Tightening Cylinder Head Cover (LH) Bolts In Sequence
    G03699769Courtesy of MAZDA MOTORS CORP.
