Crankshaft Pulley Lock Bolt Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the crankshaft pulley using the SSTs.
  2. Tighten the new crankshaft pulley lock bolt in four steps.
    1. Tighten to 120 N.m {12.2 kgf.m, 88.5 lbf}  .
    2. Loosen 360°  (one full turn) in reverse order.
    3. Tighten to 47-53 N.m {4.8-5.4 kgf.m, 35-39 ft.lbf}  .
    4. Tighten 85°-95°  .

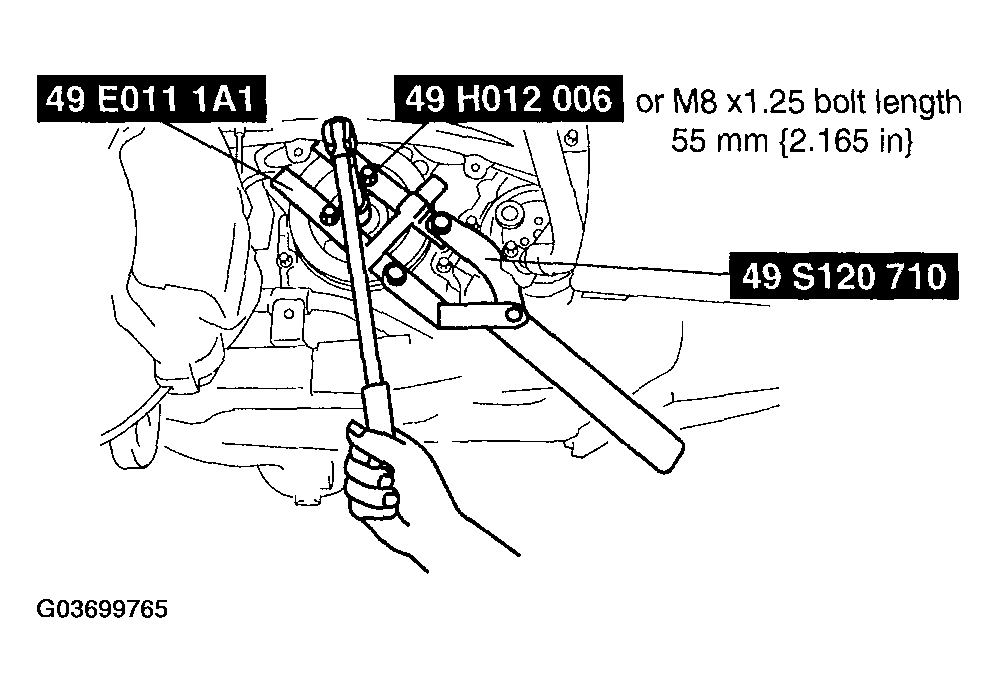

    Fig 1: Tightening Crankshaft Pulley Lock Bolt
    G03699765Courtesy of MAZDA MOTORS CORP.
