Crankshaft Pulley Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Seal the keyway in the crankshaft pulley using silicone sealant.
  2. Install the crankshaft pulley using the SST  and the crankshaft pulley lock bolt washer.

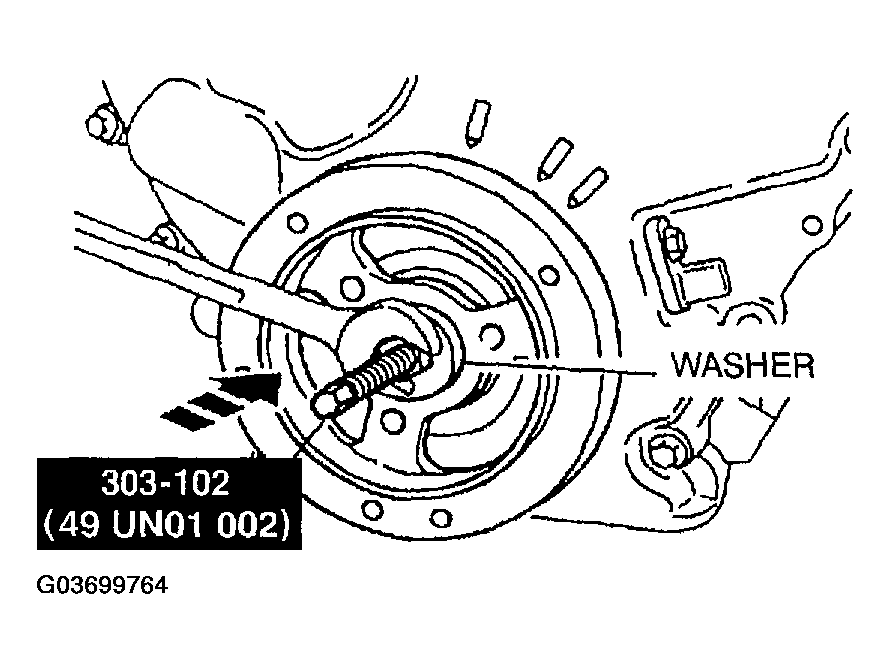

    Fig 1: Installing Crankshaft Pulley
    G03699764Courtesy of MAZDA MOTORS CORP.
