Crankshaft Position (CKP) Sensor Pulse Wheel Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Use the keyway marked 25/34Y (blue paint stripe) to install the rotor with the indentation towards the front.

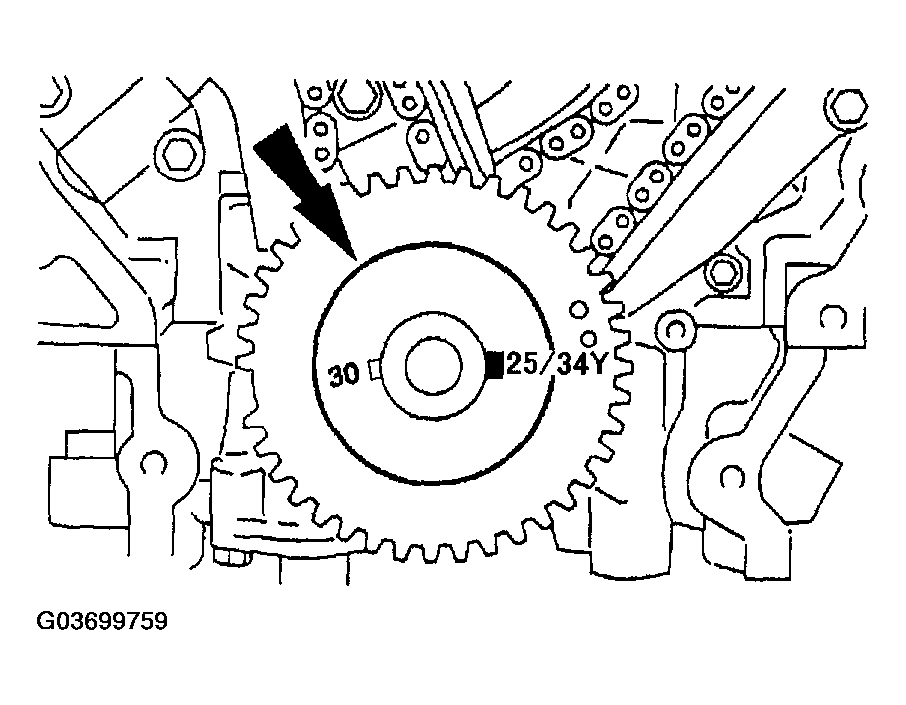

Fig 1: Identifying 25/34Y Keyway
Courtesy of MAZDA MOTORS CORP.
