Engine Mount Member Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper motor and link. (See WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION .)
  2. Suspend the engine using the SSTs  .

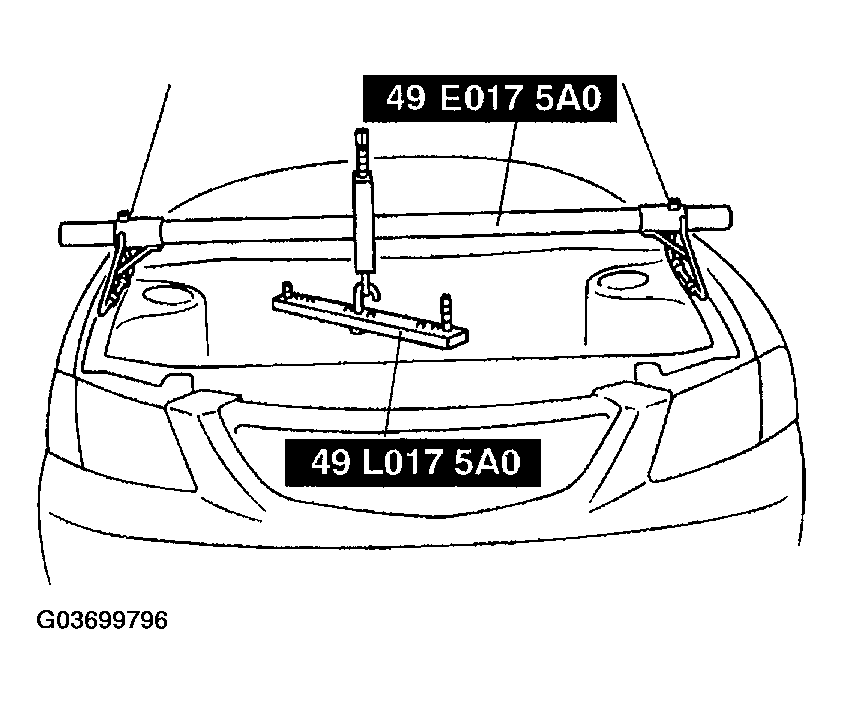

    Fig 1: Identifying Engine Lifting Harness
    G03699796Courtesy of MAZDA MOTORS CORP.
  3. Remove the No.2 engine mount nut A.
    Fig 2: Locating No.2 Engine Mount Nut A
    G03699797Courtesy of MAZDA MOTORS CORP.
