Front Drive Belt

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the drive belt auto tensioner indicator mark does not exceeds the limit.
- If it exceeds the limit, replace the drive belt. (See FRONT DRIVE BELT .)

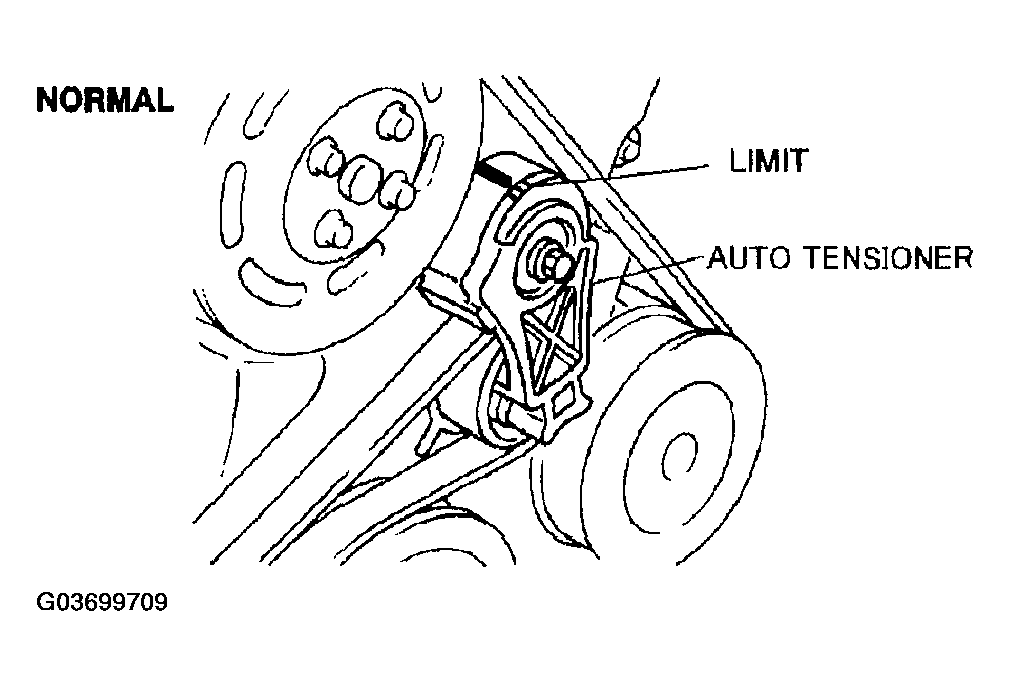

Fig 1: Inspecting Front Drive Belt (Normal)
Courtesy of MAZDA MOTORS CORP.

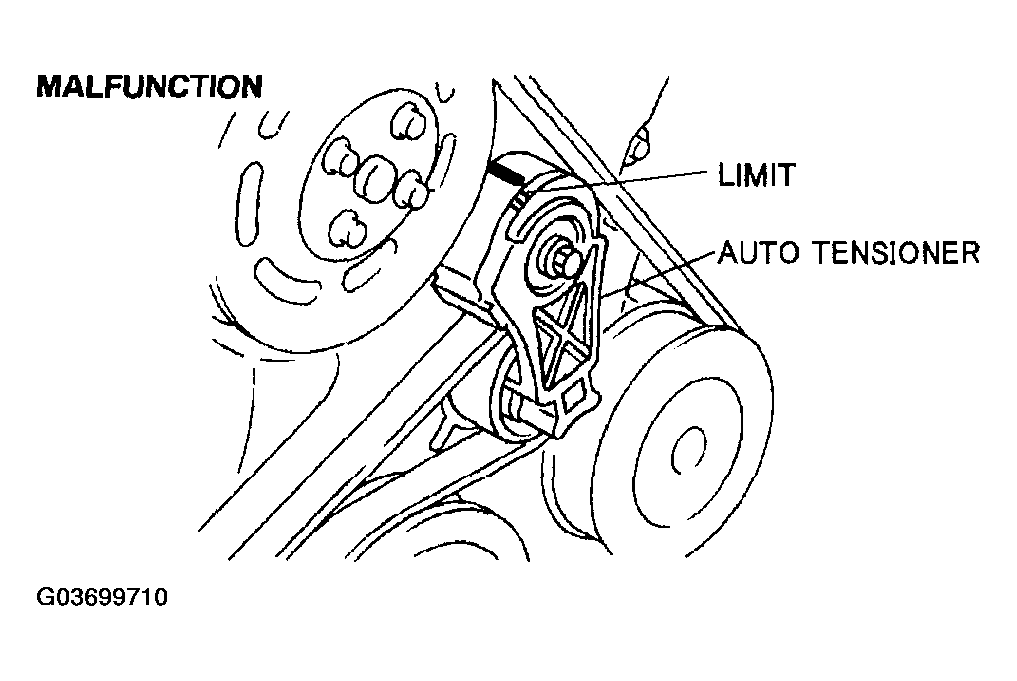

Fig 2: Inspecting Front Drive Belt (Malfunction)
Courtesy of MAZDA MOTORS CORP.
