Front Drive Belt Auto Tensioner
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front drive belt. (See FRONT DRIVE BELT .)

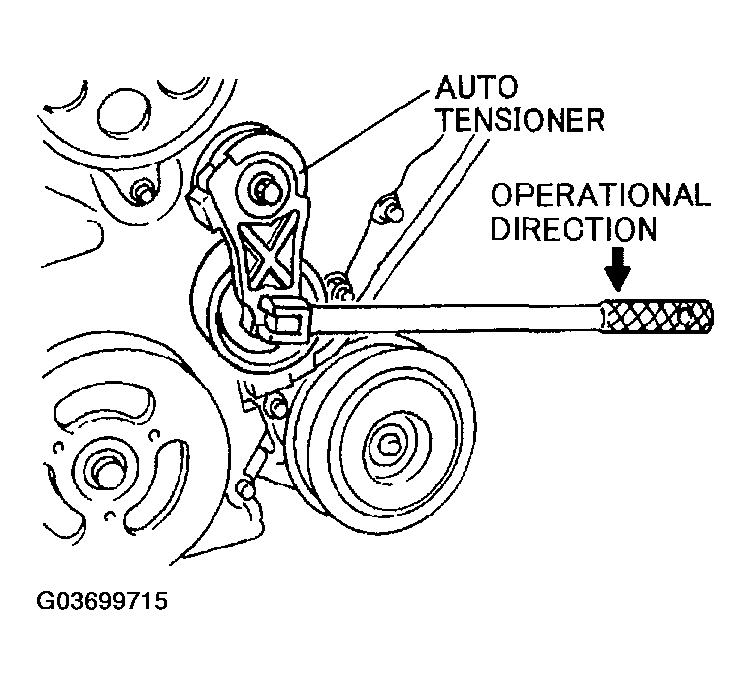

- Verify that the drive belt auto tensioner moves smoothly in the operational direction.
- Replace the drive belt auto tensioner if necessary.

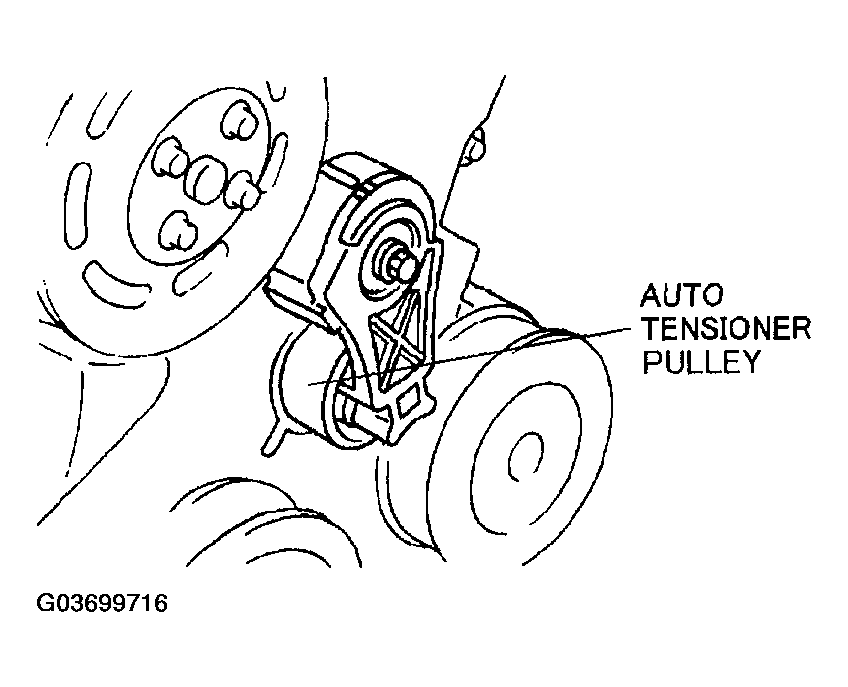

- Turn the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.
- Replace the drive belt auto tensioner if necessary.
- Install the drive belt.
Tightening torque
- 20-30 N.m {2.1-3.0 kgf.m,15-22 ft.lbf}
