Cylinder Head Gasket Replacement: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
  • Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedure". (See FUEL LINE SAFETY PROCEDURE .)
  1. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS .)
  2. Remove the water pump. (See WATER PUMP REMOVAL/INSTALLATION .)
  3. Remove the timing chain. (See TIMING CHAIN REMOVAL/INSTALLATION .)
  4. Install the No.3 engine mount rubber and joint bracket. (See TIMING CHAIN REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

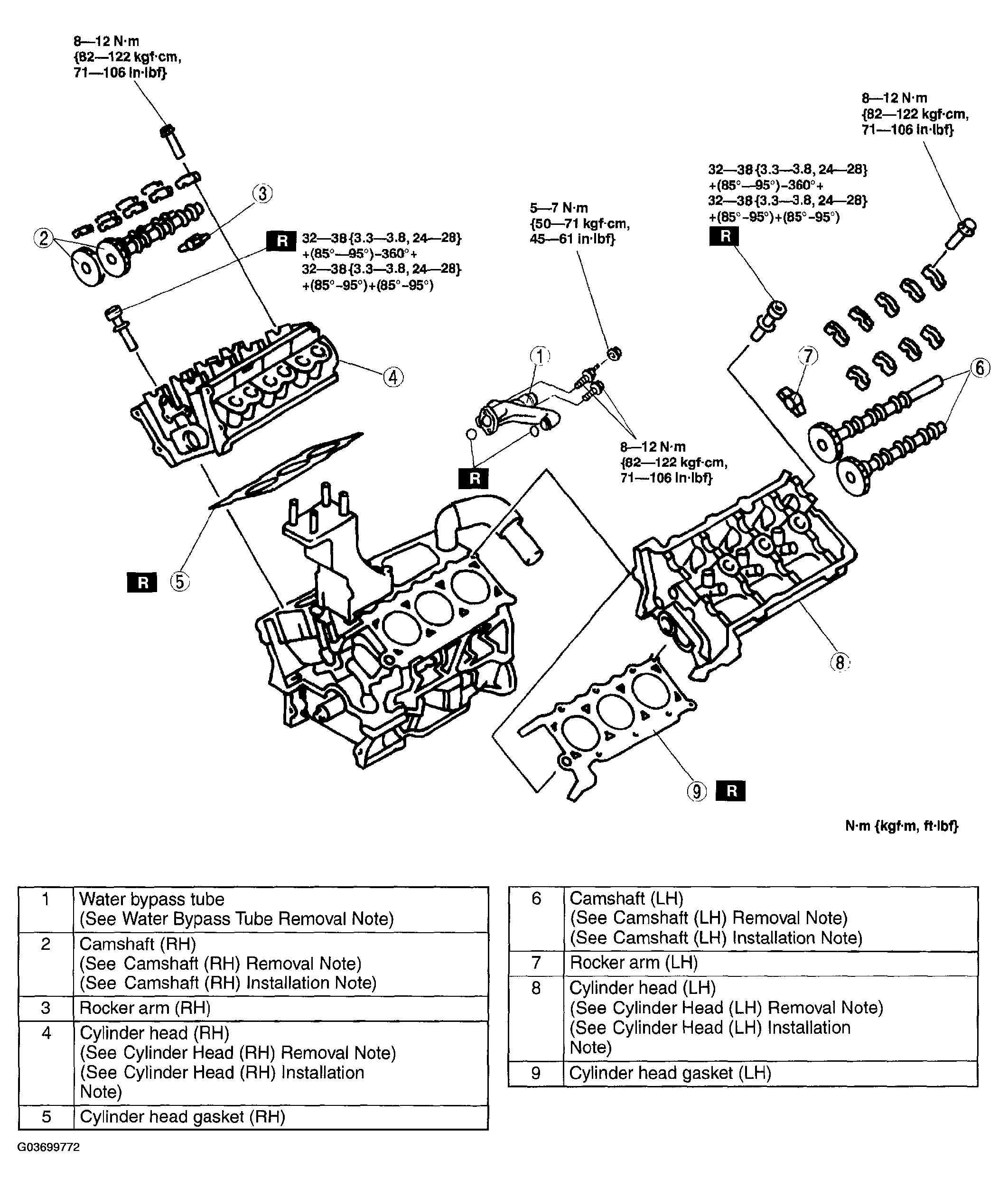

    Fig 1: Identifying Cylinder Head Gasket Components
    G03699772Courtesy of MAZDA MOTORS CORP.
