Symptom Diagnosis: Notes

WARNING: This page is about a different car, the 2002 Mazda Millenia and 2001 Mazda Millenia. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform PRELIMINARY INSPECTION prior to diagnosing by symptom.

NOTE: For additional information to assist trouble shooting of transaxle malfunctions, see Fig 1 and Fig 2 .

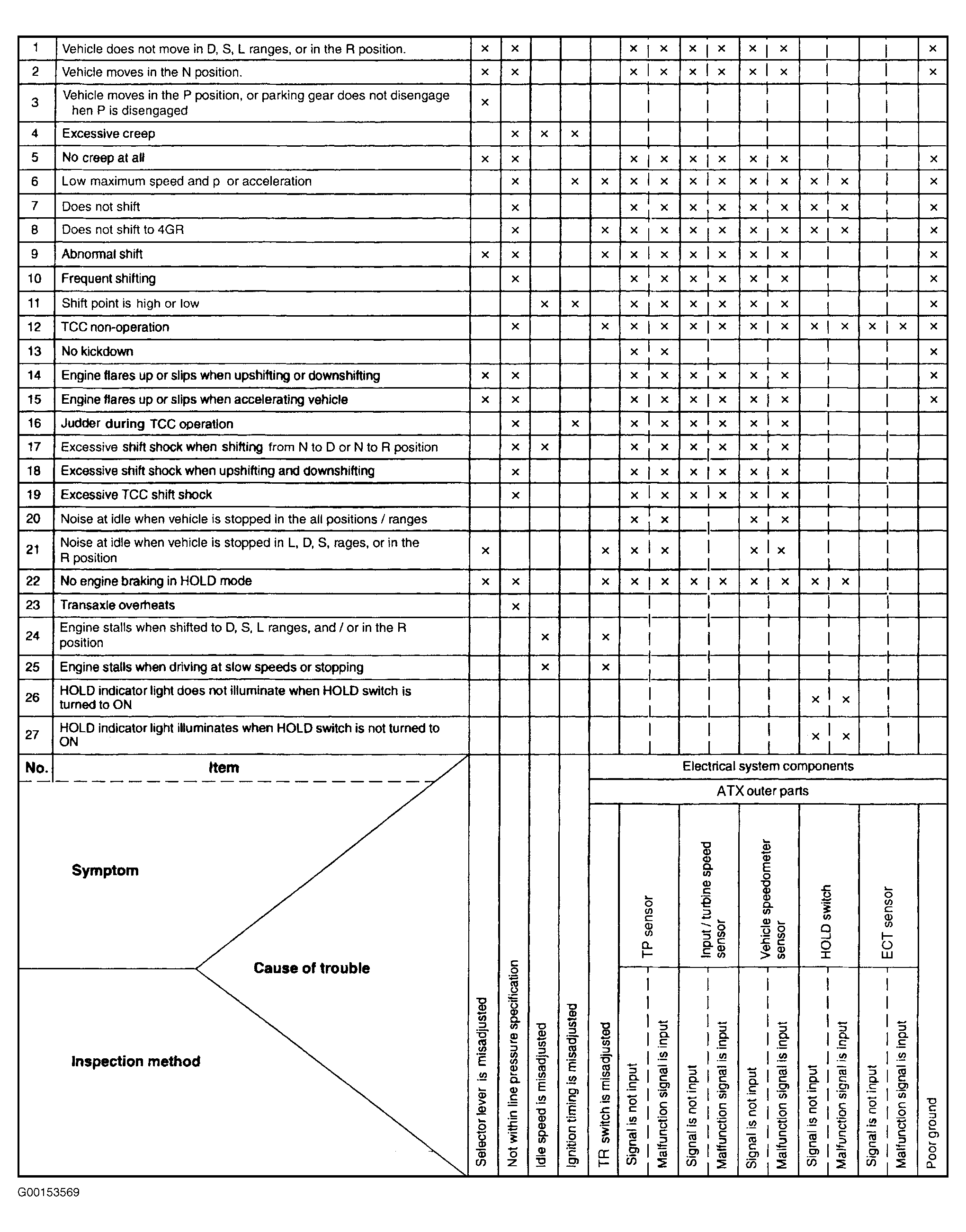

Fig 1: GF4A-EL Electronic Trouble Shooting Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: GF4A-EL Electronic Trouble Shooting Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
