Rear Antenna Feeder Inspection [5-Door]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Verify that there is no continuity between antenna feeder terminals A and B using an ohmmeter.
Inspect for continuity between the antenna feeder terminals using an ohmmeter.
- If not as specified, replace the rear harness.

  Fig 1: Rear Antenna Feeder Continuity Table [5-Door]
  Courtesy of MAZDA MOTORS CORP.

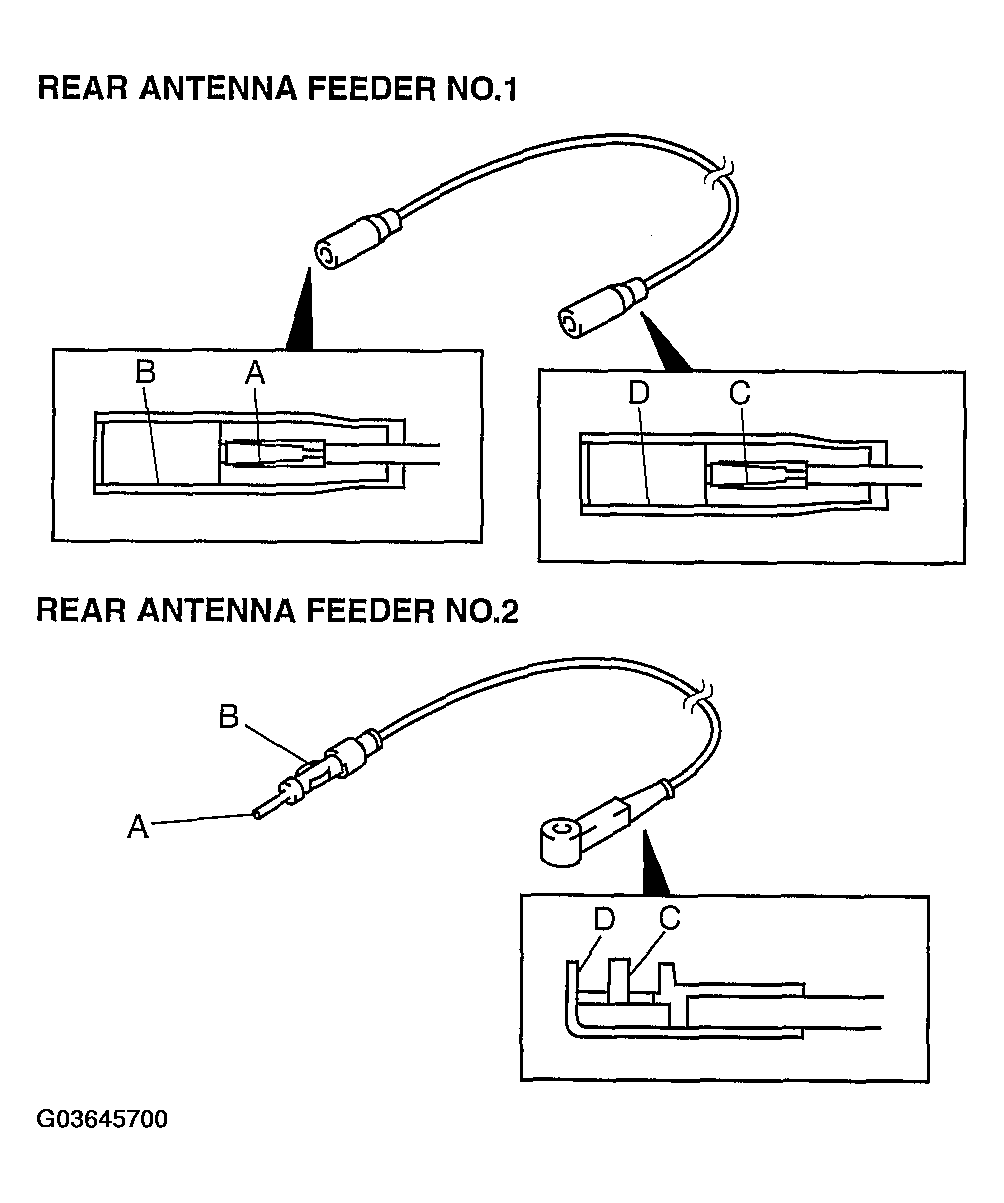

  Fig 2: Rear Antenna Feeder Connector Terminals [5-Door]
  Courtesy of MAZDA MOTORS CORP.
