Trunk Side Trim Removal/Installation: Sedan

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk end trim.
  2. Remove the fasteners, then remove the trunk side trim.
  3. Install in the reverse order of removal.

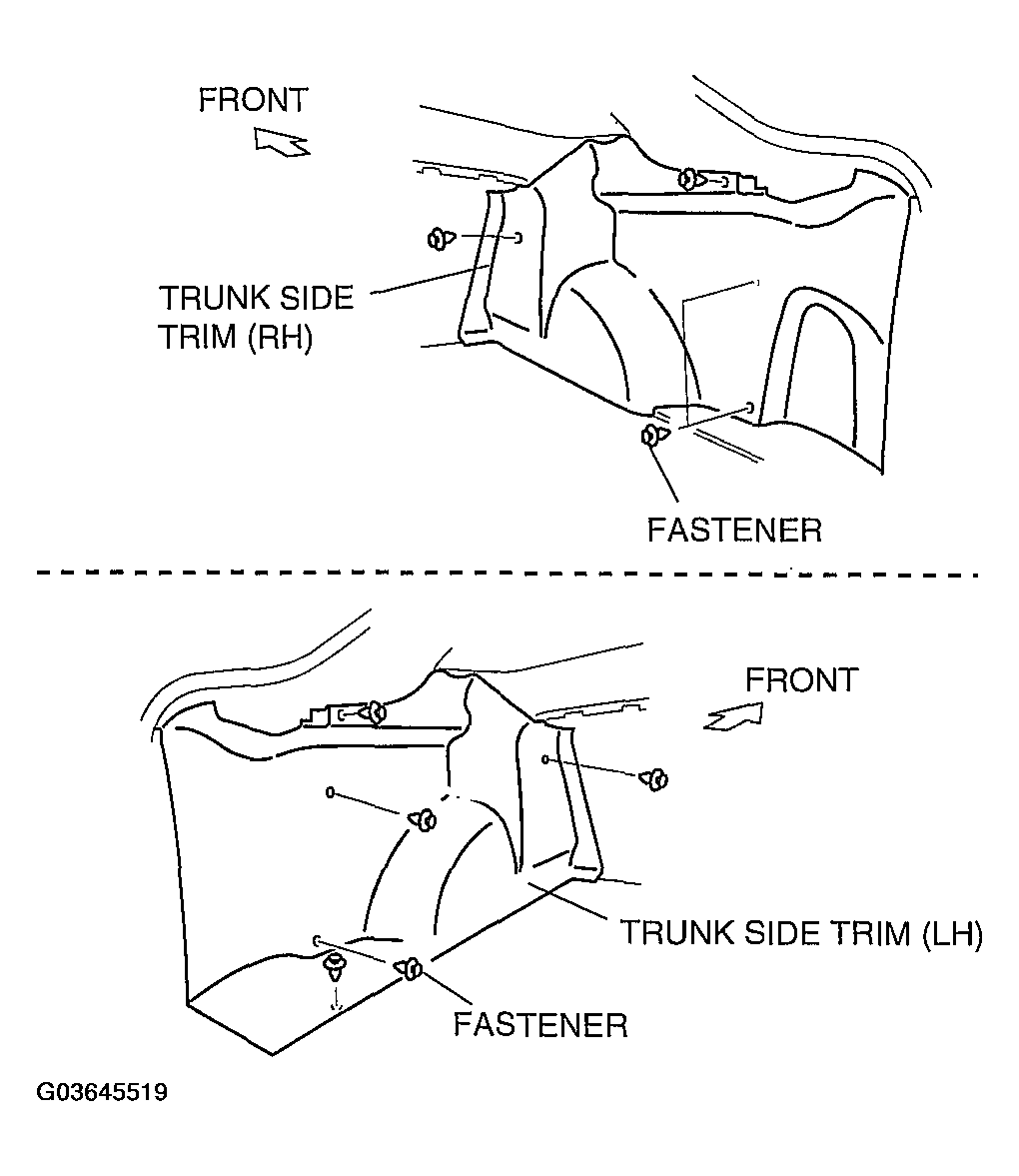

    Fig 1: Removing/Installing Trunk Side Trim (Sedan)
    G03645519Courtesy of MAZDA MOTORS CORP.
