Rear Package Trim Removal/Installation [Sedan]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the high-mount brake light.
  2. Fold down the rear seat back.
  3. Remove the fasteners
  4. Pull the rear package trim upward, then disengage the clips from the body.
  5. Disengage the tabs, then remove the rear package trim.
  6. Install in the reverse order of removal.

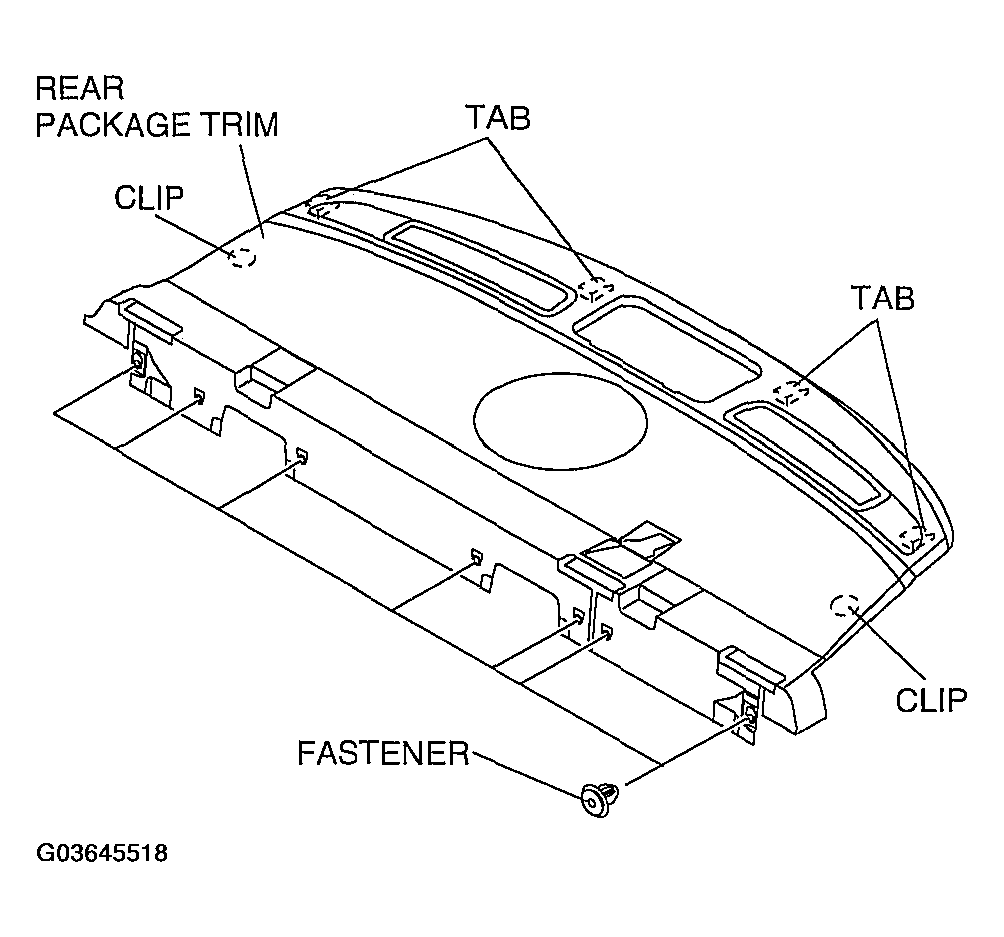

    Fig 1: Removing/Installing Rear Package Trim [Sedan]
    G03645518Courtesy of MAZDA MOTORS CORP.
