Rear Door Trim Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Open the cap using a small screwdriver, then remove the screw.
  3. Remove the inner handle cover.
    Fig 1: Removing Inner Handle Cover
    G03645510Courtesy of MAZDA MOTORS CORP.
  4. Remove the cover, then remove screw A.

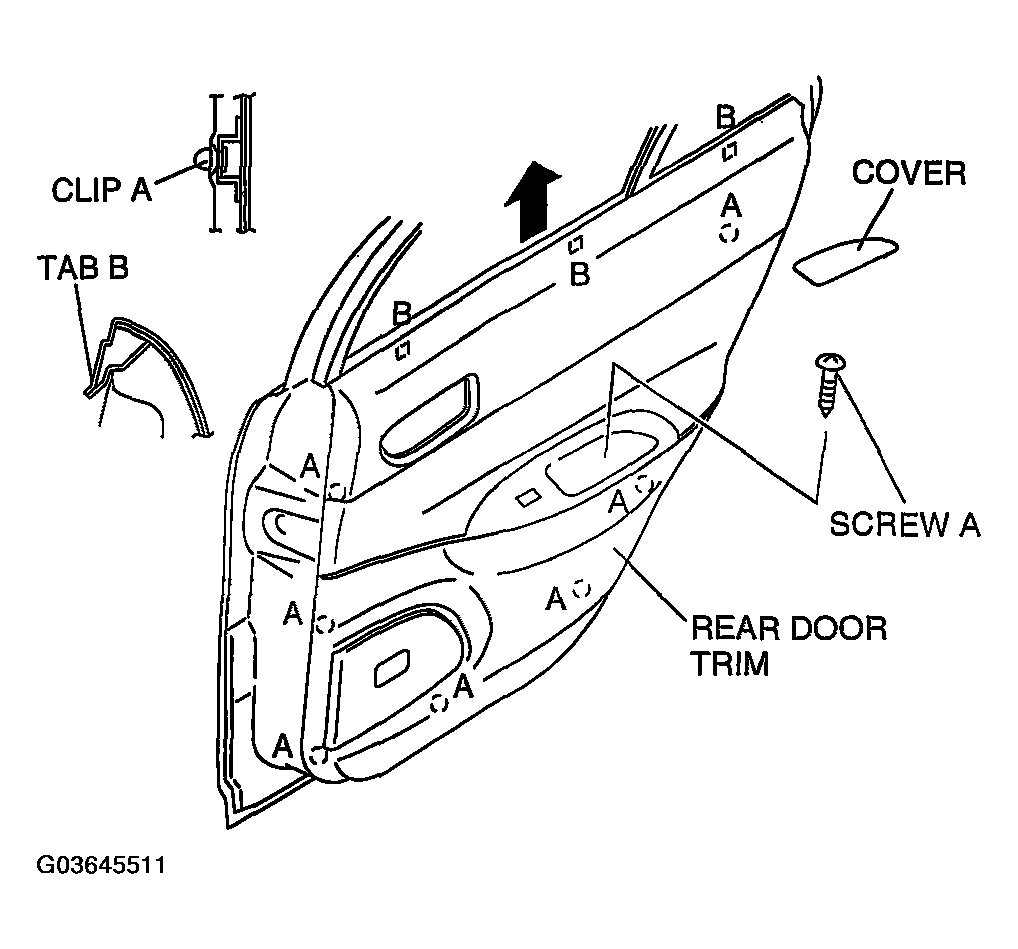

    Fig 2: Removing Rear Door Trim
    G03645511Courtesy of MAZDA MOTORS CORP.
  5. Disengage clips A from the rear door using a fastener remover.
  6. Pull the rear door trim upward, then disengage tabs B from the rear door.
  7. Disconnect the power window subswitch connector.
  8. Remove the rear door trim.
  9. Remove the switch panel from the rear door trim.
  10. Install in the reverse order of removal.
