Meter Hood Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws.
Pull the meter hood outward, then detach the column cover.
Install in the reverse order of removal.

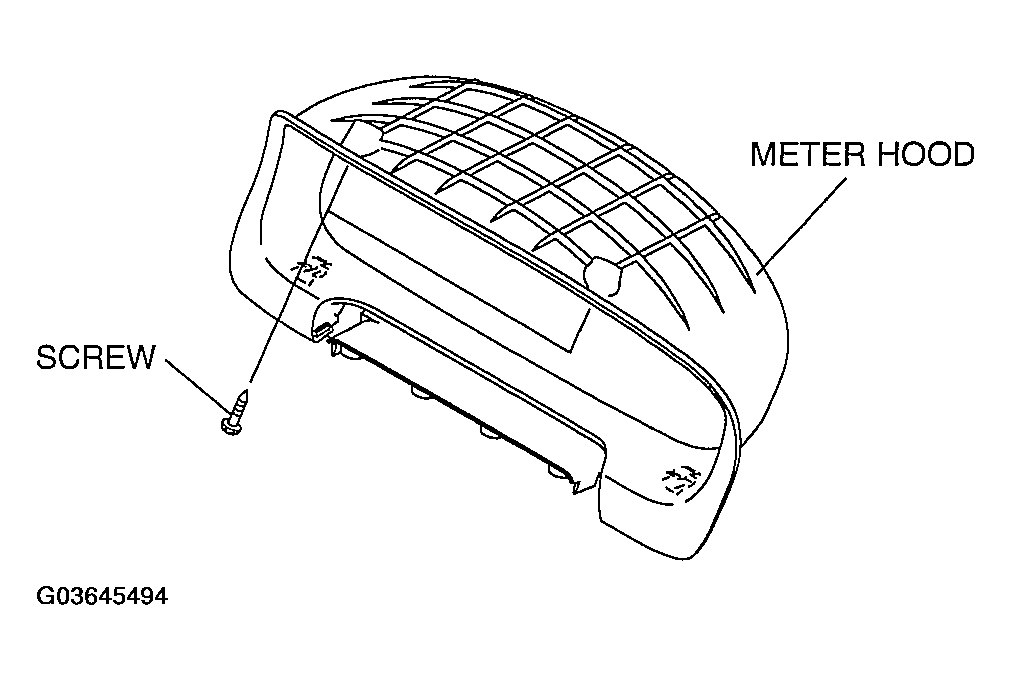

Fig 1: Removing/Installing Meter Hood
Courtesy of MAZDA MOTORS CORP.
