Front Door Trim Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Open the cap using a small screwdriver, then remove the screw.
  3. Remove the inner handle cover.
    Fig 1: Removing Inner Handle Cover
    G03645508Courtesy of MAZDA MOTORS CORP.
  4. Remove the inner garnish.
  5. Remove the cover, then remove screw A.

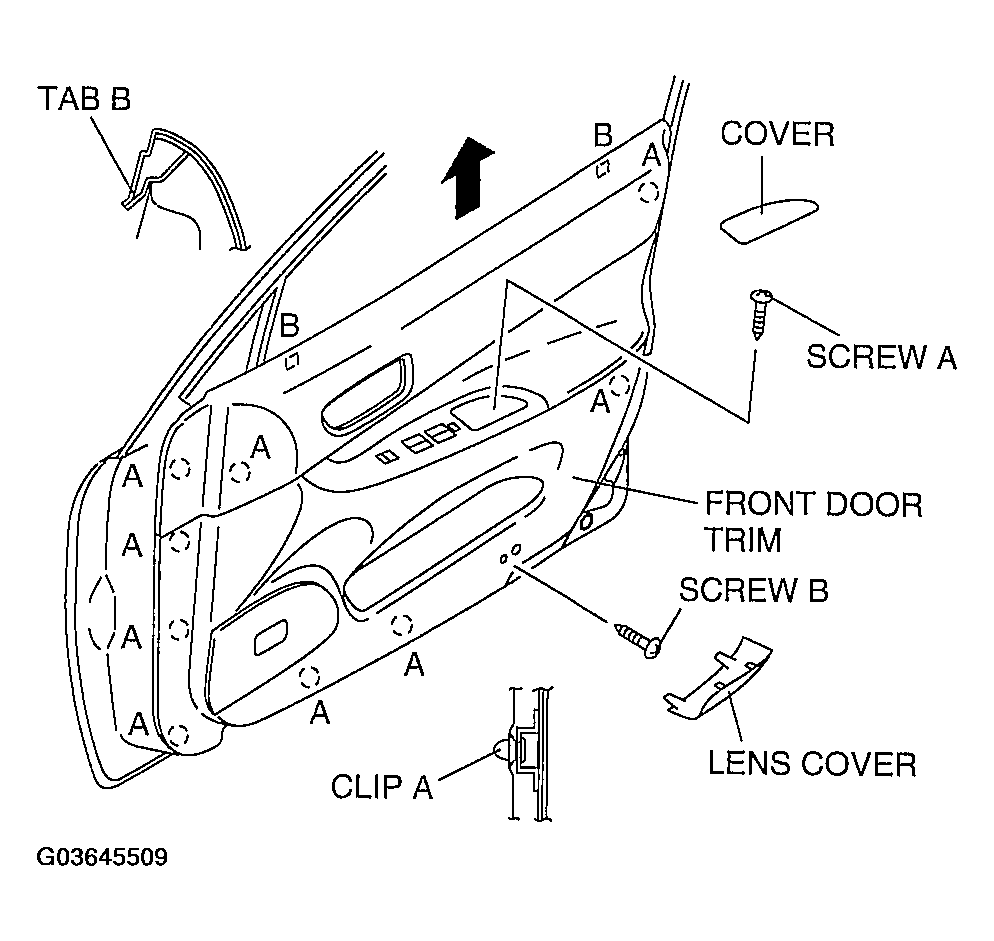

    Fig 2: Removing Front Door Trim
    G03645509Courtesy of MAZDA MOTORS CORP.
  6. Remove the lens cover, then remove screw B.
  7. Disengage clips A from the front door using a fastener remover.
  8. Pull the front door trim upward, then disengage tabs B from the front door.
  9. Disconnect the power door mirror switch connector and the power window main switch connector (driver's side) or power window subswitch connector (passenger's side).
  10. Remove the courtesy light.
  11. Remove the front door trim.
  12. Remove the switch panel from the front door trim.
  13. Install in the reverse order of removal.
