Sport Wagon

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk side upper trim.
  2. Turn the seaming welt over.
  3. Remove the fastener.
  4. Pull the C-pillar trim forward, then disengage the clip A and pin B from the body.
  5. Remove the hook from the body, then remove the C-pillar trim.
  6. Install in the reverse order of removal.

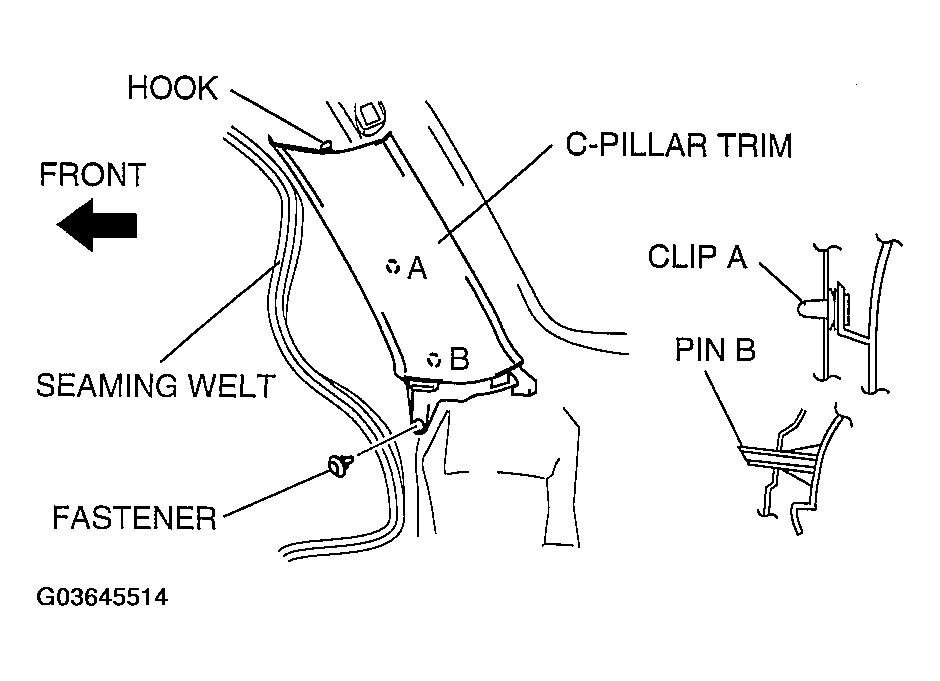

    Fig 1: Removing/Installing C-Pillar Trim (Sport Wagon)
    G03645514Courtesy of MAZDA MOTORS CORP.
