C-Pillar Trim Removal/Installation: Sedan

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tire house trim.
  2. Partially peel back the seaming welt.
  3. Remove the cap using a fastener remover, and remove the bolt (with curtain air bag system).
  4. Disengage clips A and pin B using a fastener remover.
  5. Pull the C-pillar trim outward, then disengage the tab from the body.
  6. Install in the reverse order of removal.

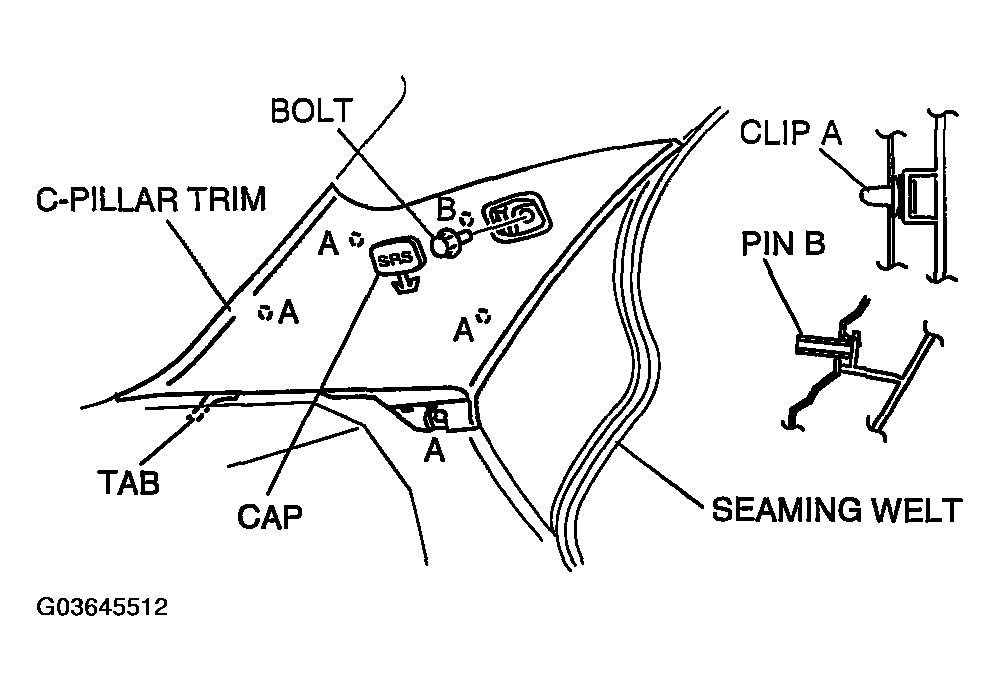

    Fig 1: Removing/Installing C-Pillar Trim (Sedan)
    G03645512Courtesy of MAZDA MOTORS CORP.
