Vehicle without T-stud (When replacing roof panel)

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply primer to the areas of the roof panel indicated in the figure.

Fig 1: Applying Primer To Areas Of Roof Panel
Courtesy of MAZDA MOTORS CORP.
Cut the spring off of the front and rear ends of the roof molding.

Fig 2: Cutting Spring Off Front And Rear Ends Of Roof Molding
Courtesy of MAZDA MOTORS CORP.
Apply primer to the areas of the roof molding indicated in the figure.
Apply sealant to the areas of the roof molding indicated in the figure.

Fig 3: Applying sealant to areas of roof molding
Courtesy of MAZDA MOTORS CORP.
Install the roof molding to the clips as shown in the figure.

Fig 4: Installing Roof Molding To Clips
Courtesy of MAZDA MOTORS CORP.
Use a plastic card (10 mm {0.39 in} width, 30 mm {1.18 in} length) to adjust the front and rear gaps of the roof molding.

Fig 5: Adjusting Front And Rear Gaps Of Roof Molding , Using A Plastic Card
Courtesy of MAZDA MOTORS CORP.

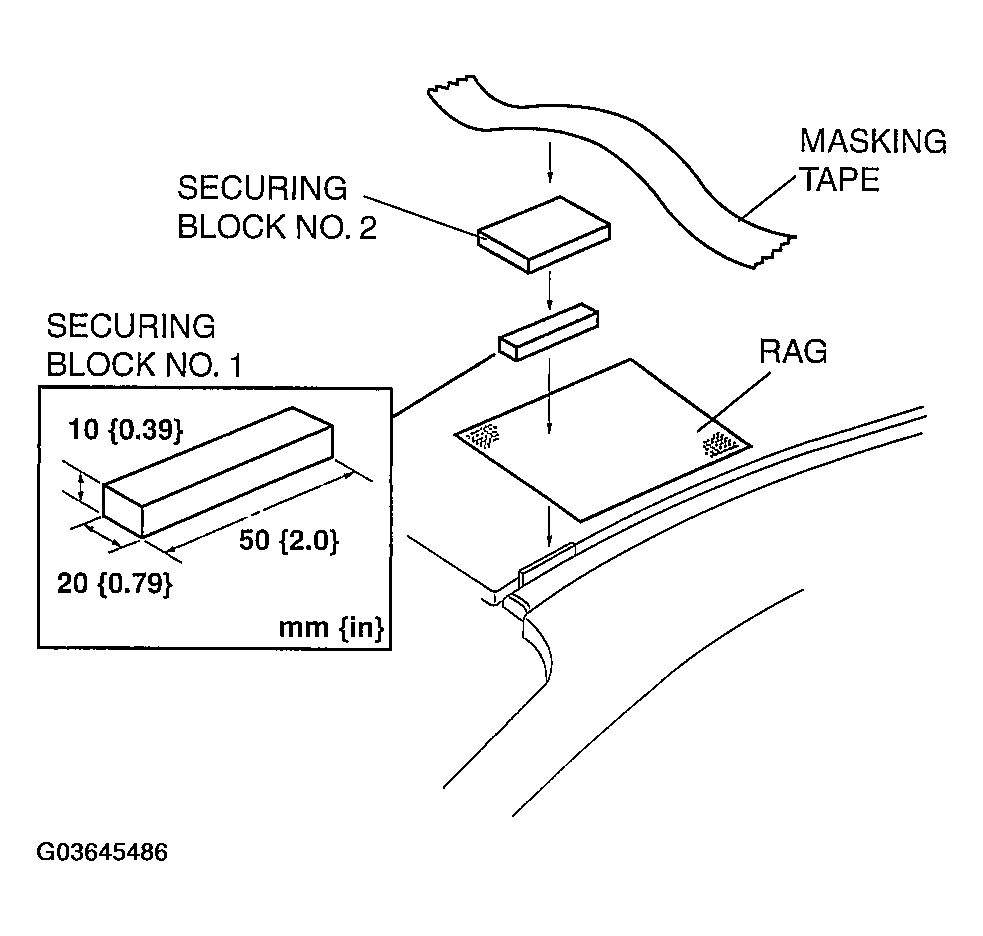

Secure the front and rear ends of the roof molding as shown in the figure.

Fig 6: Securing Roof Molding
Courtesy of MAZDA MOTORS CORP.
After the adhesive material has hardened, remove the securing parts.
