Rear Spoiler Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk lid trim. (Sedan)
  2. Remove the liftgate upper trim, liftgate side trim and liftgate lower trim. (5-Door)
  3. Remove the liftgate upper trim. (Sport Wagon)
  4. Remove the bolts and nuts.

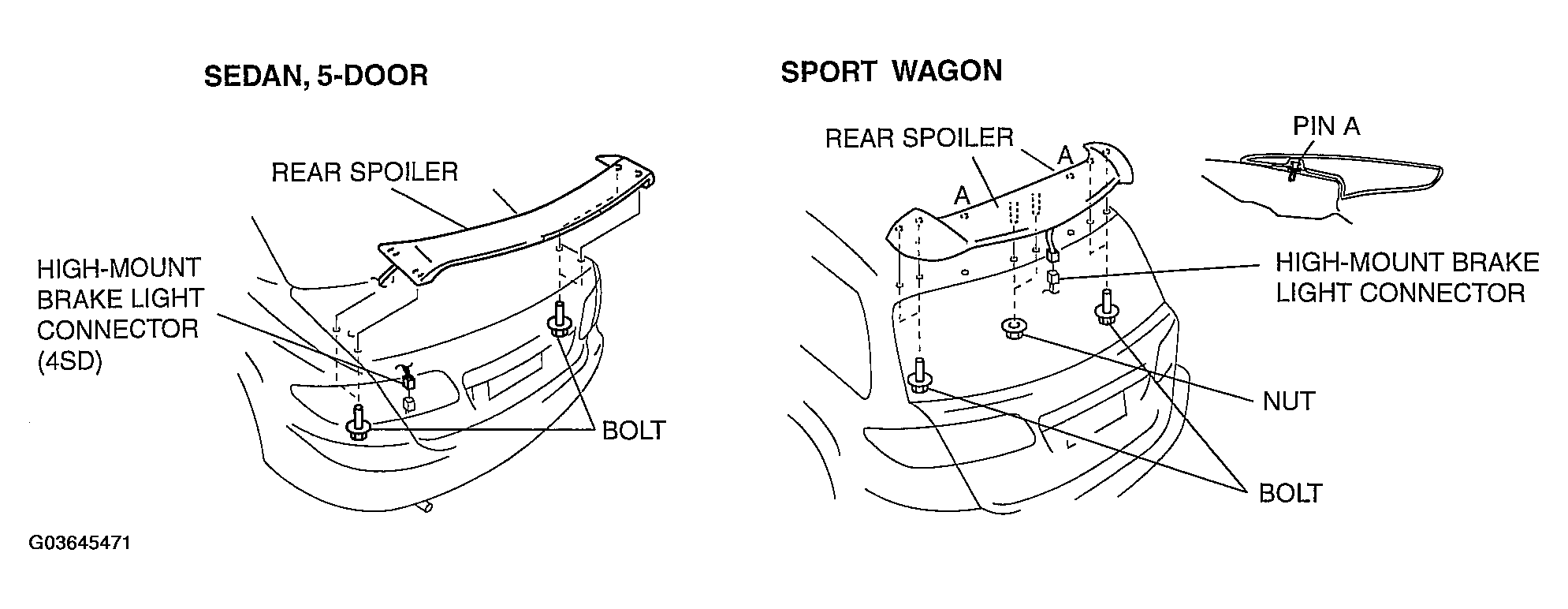

    Fig 1: Removing/Installing Rear Spoiler
    G03645471Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the high-mount brake light connector. (Sedan, Sport Wagon)
  6. Remove the rear spoiler.
  7. Install in the reverse order of removal.
