Extractor Chamber Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  2. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION .)
  3. Remove the screw. (Sedan, 5-Door)

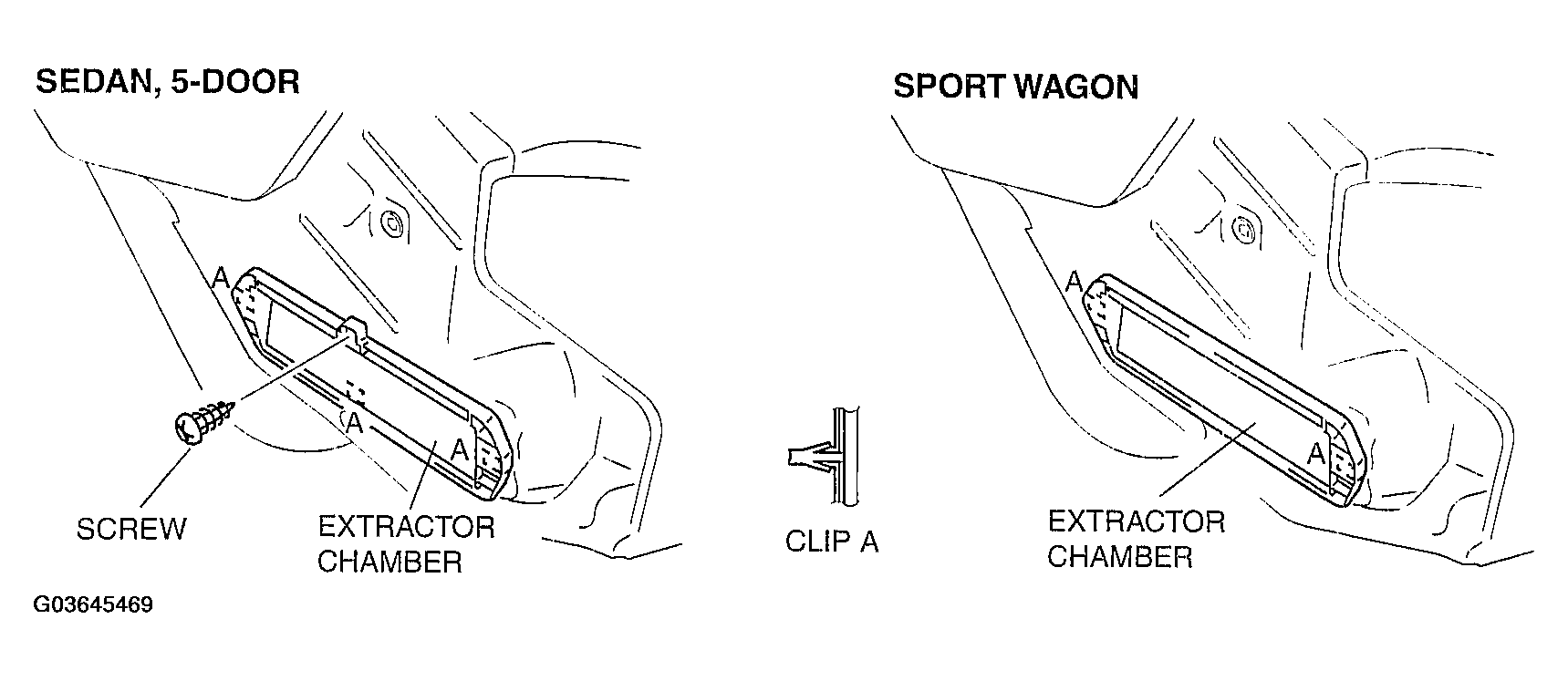

    Fig 1: Removing/Installing Extractor Chamber Procedure
    G03645469Courtesy of MAZDA MOTORS CORP.
  4. Squeeze the clips A and remove the extractor chamber from the vehicle side.
  5. Install in the reverse order of removal.
