Cowl Grille Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

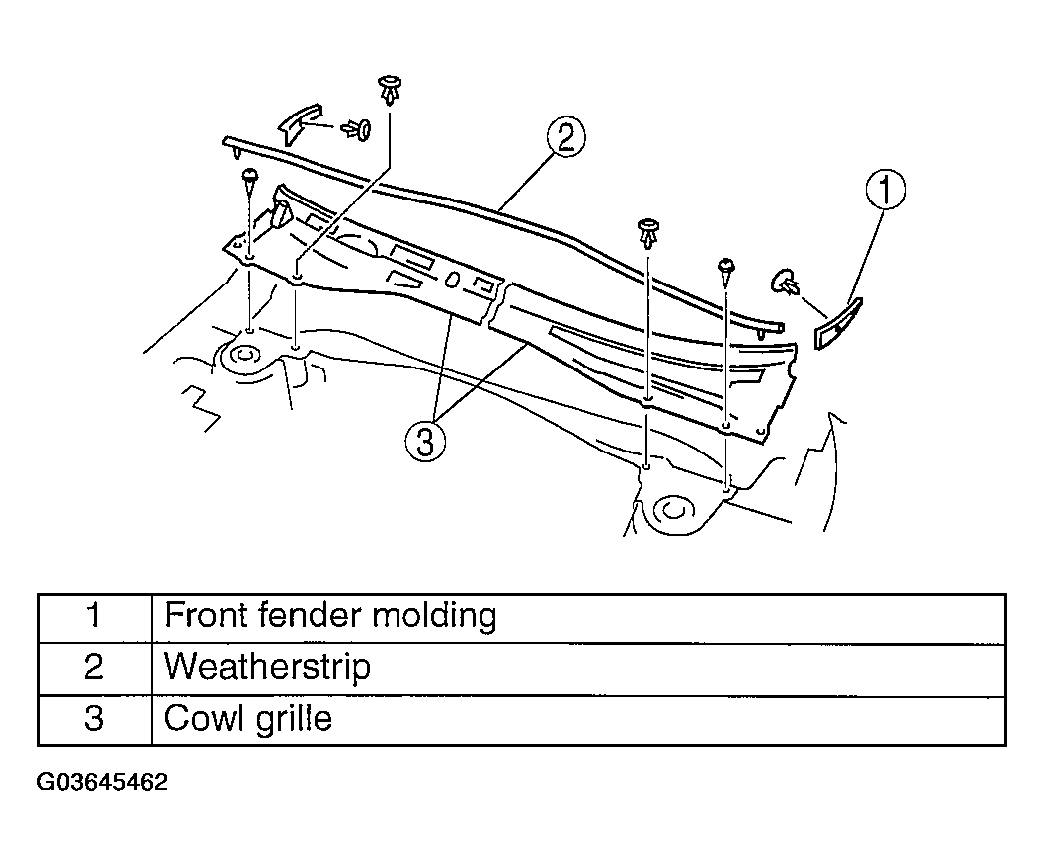

    Fig 1: Cowl Grille Removal Sequence
    G03645462Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
