Liftgate Lock Actuator Inspection [5-Door, Sport Wagon]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply battery positive voltage and connect ground to the corresponding liftgate lock actuator terminals, and inspect the liftgate lock actuator operation.

If not as specified, replace the liftgate latch and lock actuator.

LIFTGATE LOCK ACTUATOR SPECIFICATION

Lock Actuator operation	Connection
Lock Actuator operation	B+	GND
Lock	A	B
Unlock	B	A

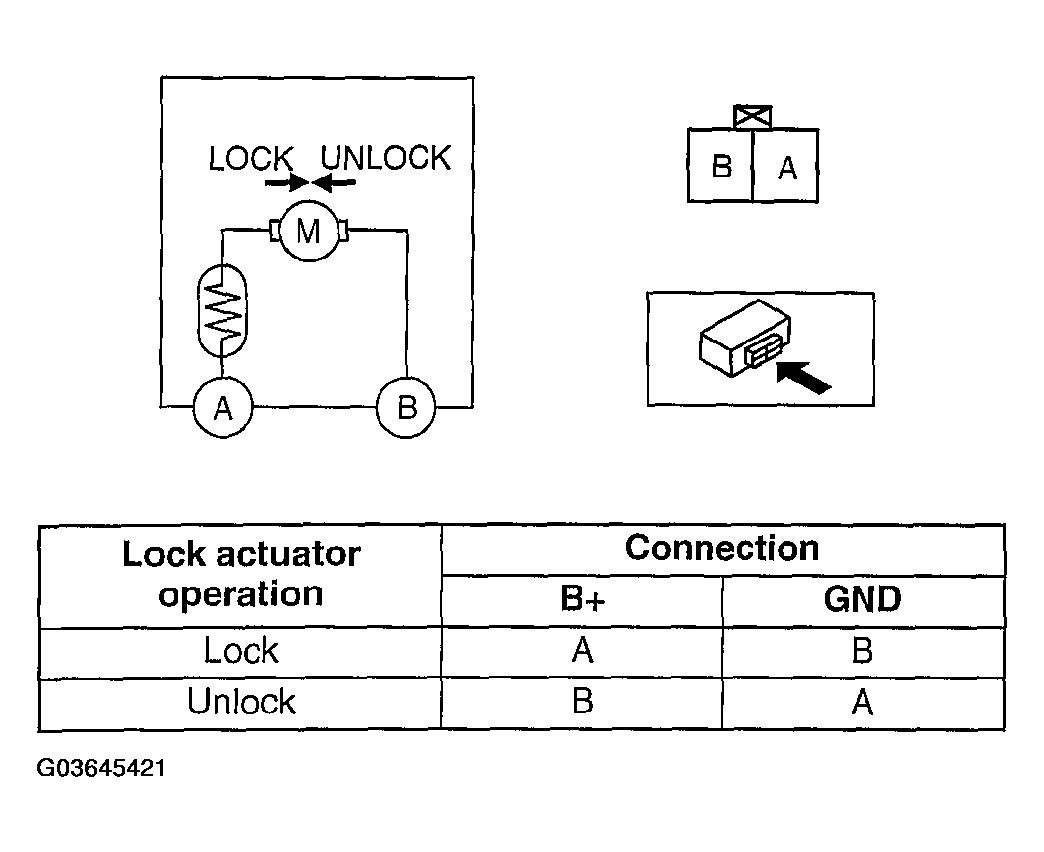

Fig 1: Liftgate Lock Actuator Circuit Diagram And Connector Terminals

Courtesy of MAZDA MOTORS CORP.
