Liftgate Latch And Lock Actuator Removal/Installation [5-Door, Sport Wagon]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION [5-DOOR, SPORT WAGON] .)
  3. Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION [5-DOOR, SPORT WAGON] .)
  4. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION [5-DOOR, SPORT WAGON] .)
  5. Remove in the order indicated in the table.

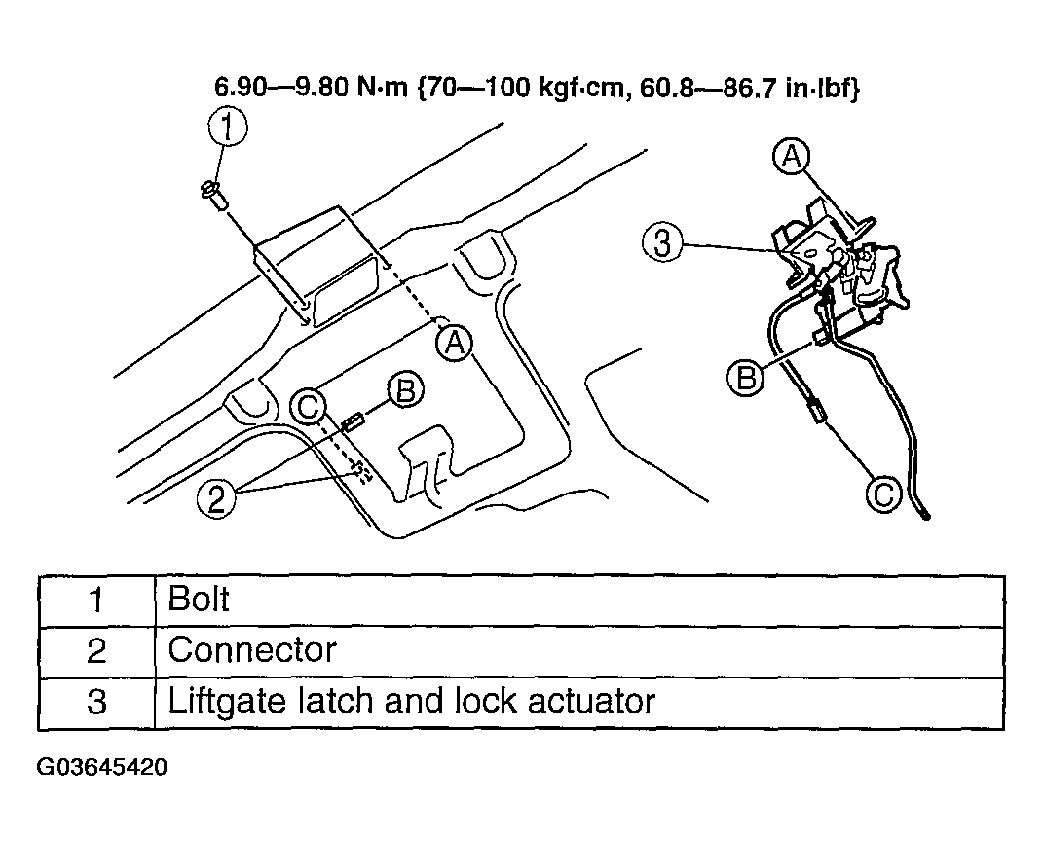

    Fig 1: Lift Gate Latch And Lock Actuator Removal Sequence [5-Door, Sport Wagon] (Torque Specs)
    G03645420Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
