Remote Handle Lever Removal/Installation [Sedan]
Remote Handle Lever Removal/Installation [Sedan]
WARNING:
This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
To remove the remote wire, remove the trunk side trim.
Remove in the order indicated in the table.

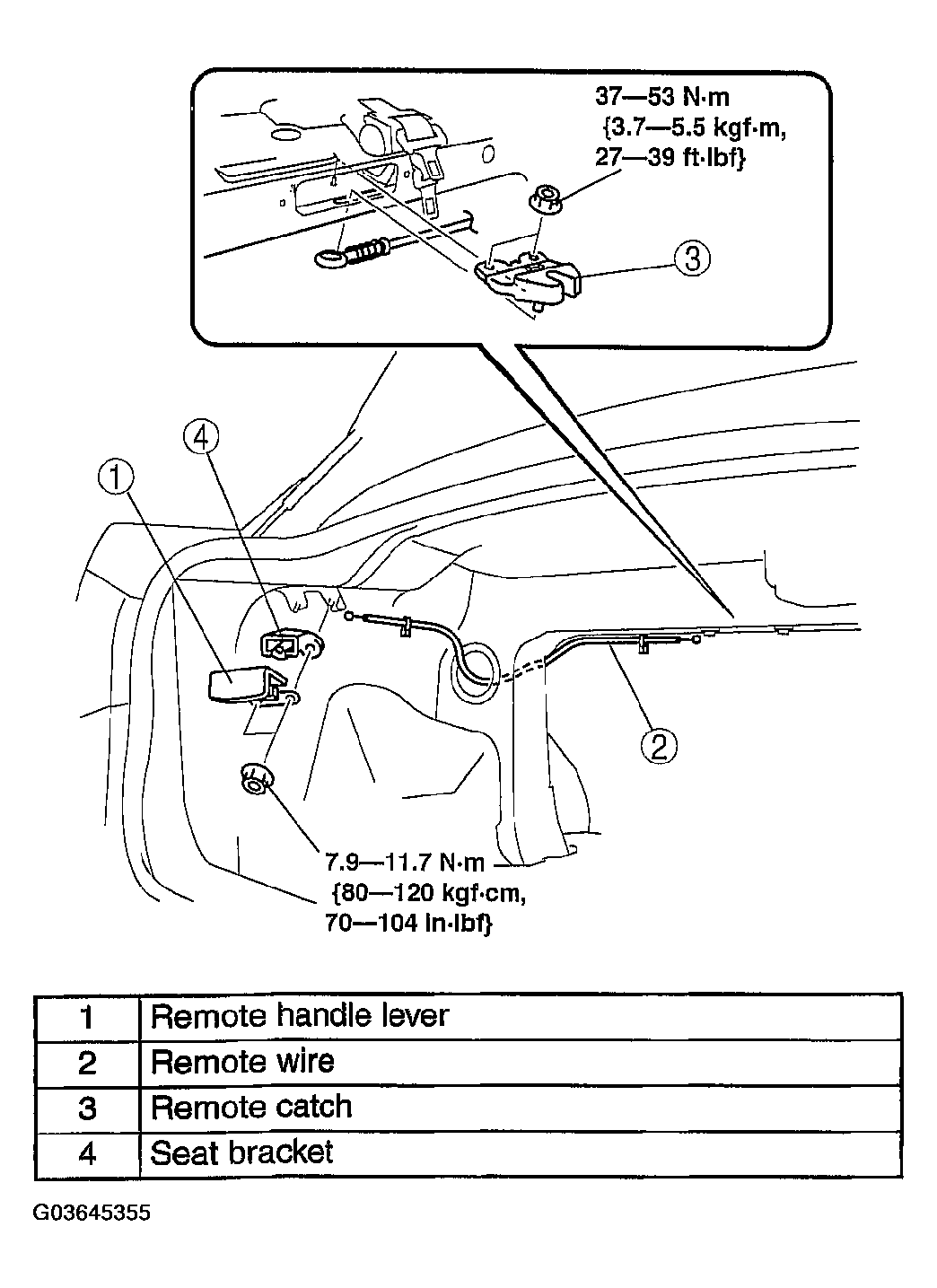

Fig 1: Remote Handle Lever Removal Sequence [Sedan] (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
