Rear Seat Removal/Installation [Sedan]: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.

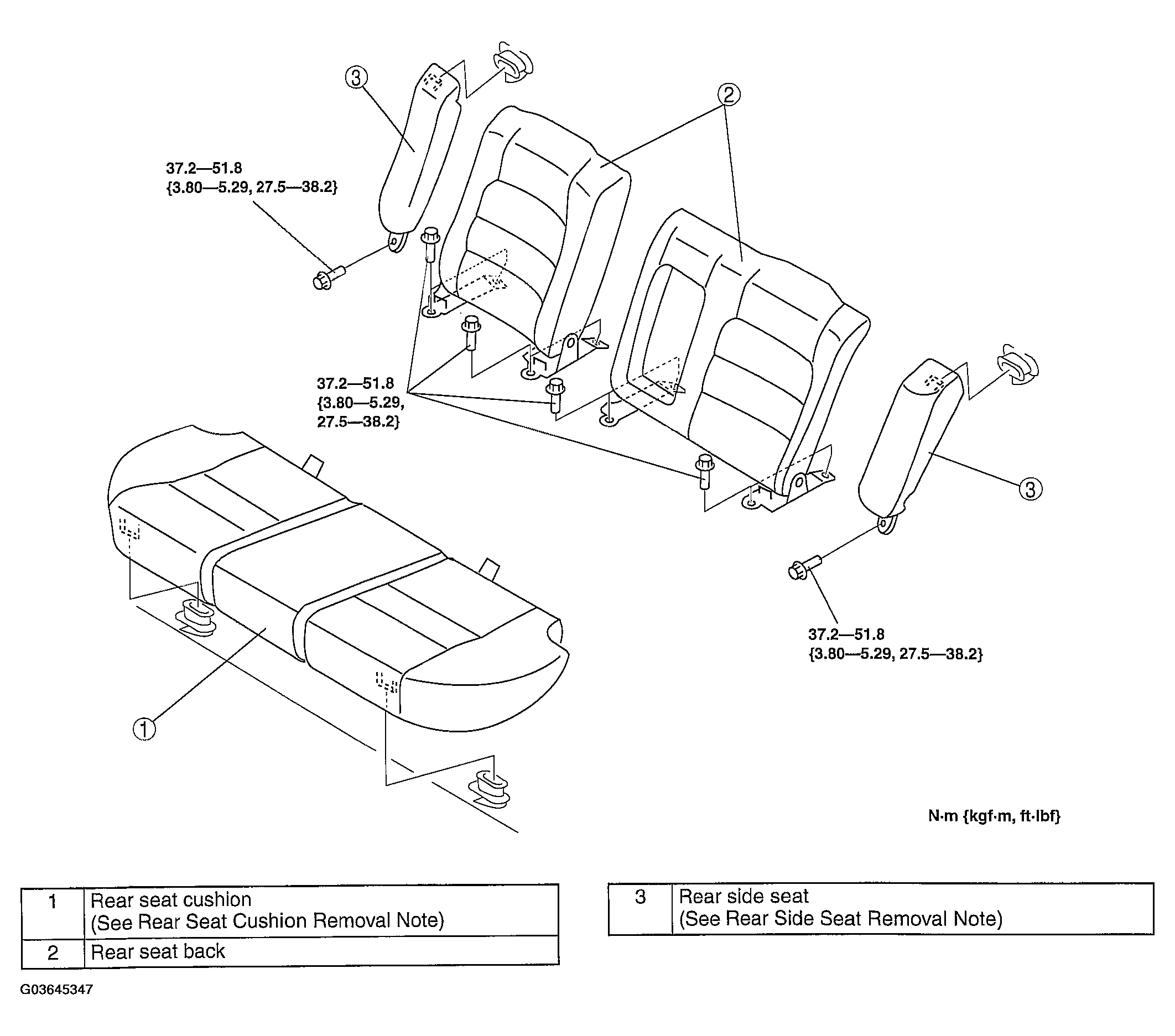

    Fig 1: Rear Seat Removal Sequence [Sedan] (Torque Specs)
    G03645347Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
