Rear Seat Disassembly/Assembly [5-Door, Sport Wagon]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

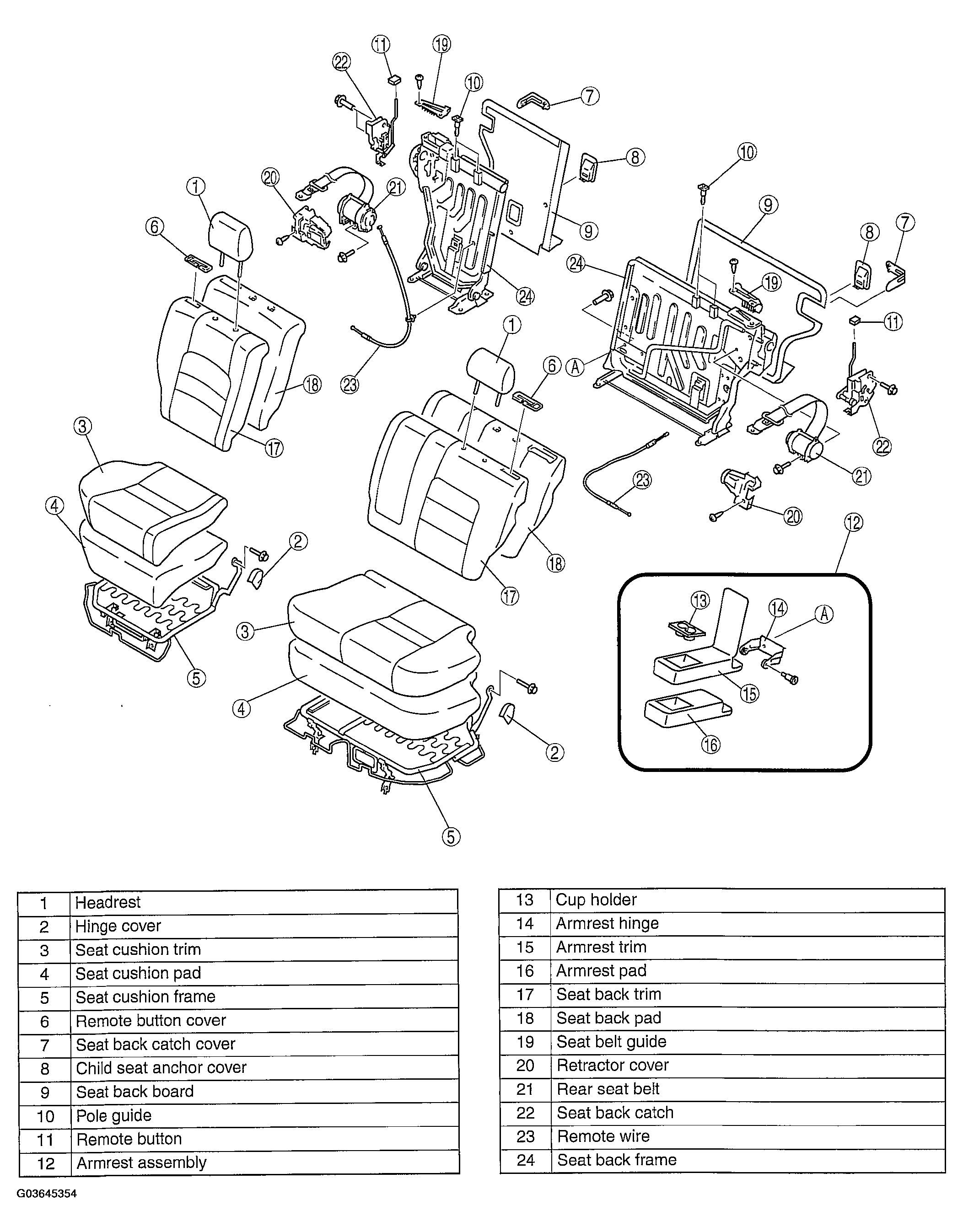

    Fig 1: Rear Seat Disassembly Sequence [5-Door, Sport Wagon]
    G03645354Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
