Front Bumper Reinforcement Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION  .)
  3. Remove the headlight. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  4. Support the radiator and the condenser using the wire.
  5. Remove in the order indicated in the table.

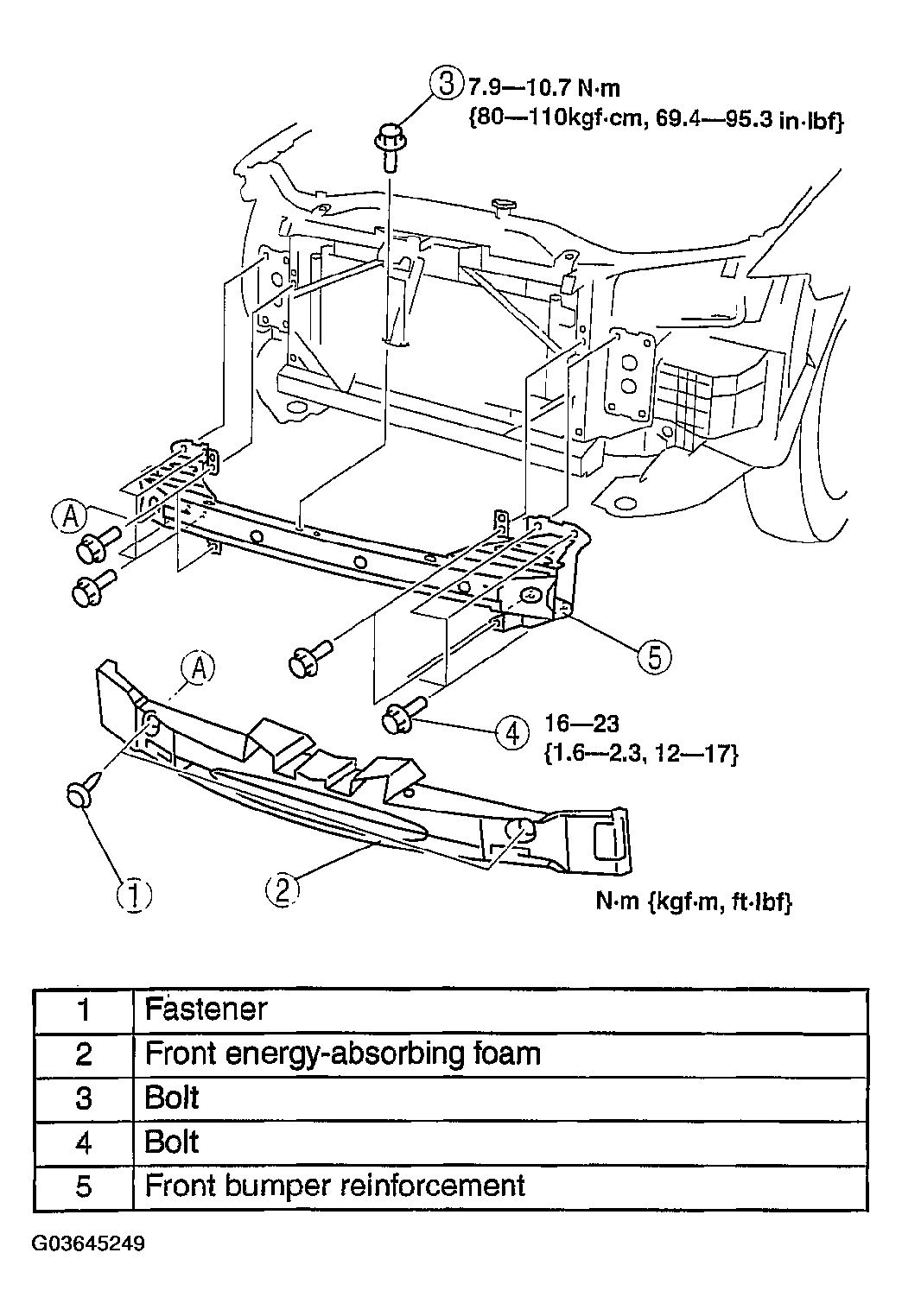

    Fig 1: Front Bumper Reinforcement Removal Sequence (Torque Specs)
    G03645249Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
