Cowl Panel Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the cowl grille.
  3. Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

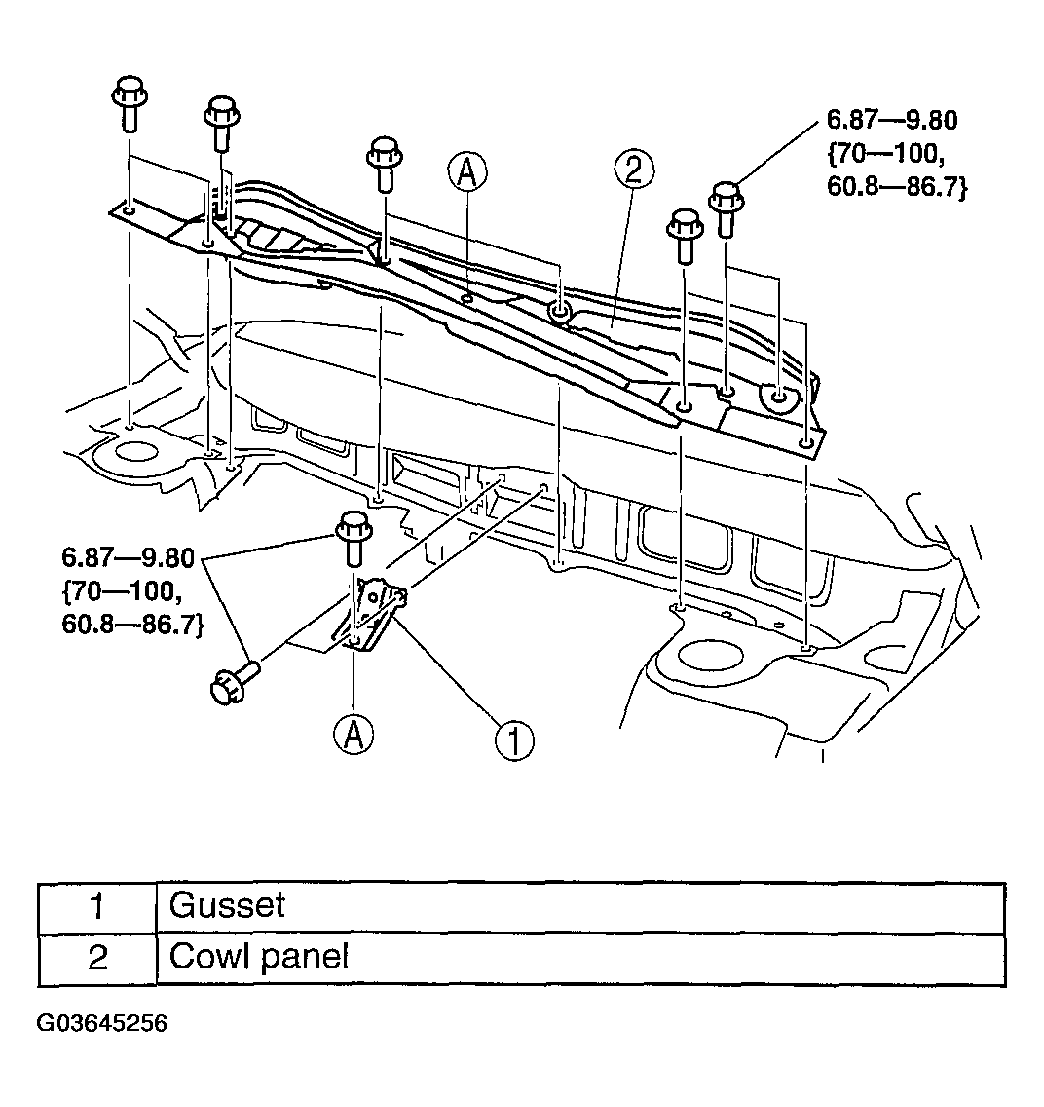

    Fig 1: Cowl Panel Removal Sequence (Torque Specs)
    G03645256Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
