Trouble Shooting: Notes

WARNING: This page is about a different car, the 2002 Mazda 626 and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Any diagnosis should begin with confirming the customer's complaint. If possible, road test vehicle first, and note transaxle performance for future reference during diagnosis.

NOTE: Prior to symptom diagnosis, record any stored DTCs. See RETRIEVING DIAGNOSTIC TROUBLE CODES (QUICK TEST) under SELF-DIAGNOSTIC SYSTEM. If DTCs are present, diagnose and repair as instructed. If no DTCs are present, see SYMPTOM DIAGNOSIS .

NOTE: For additional information to assist trouble shooting of transaxle malfunctions, see Fig 1 and Fig 2 .

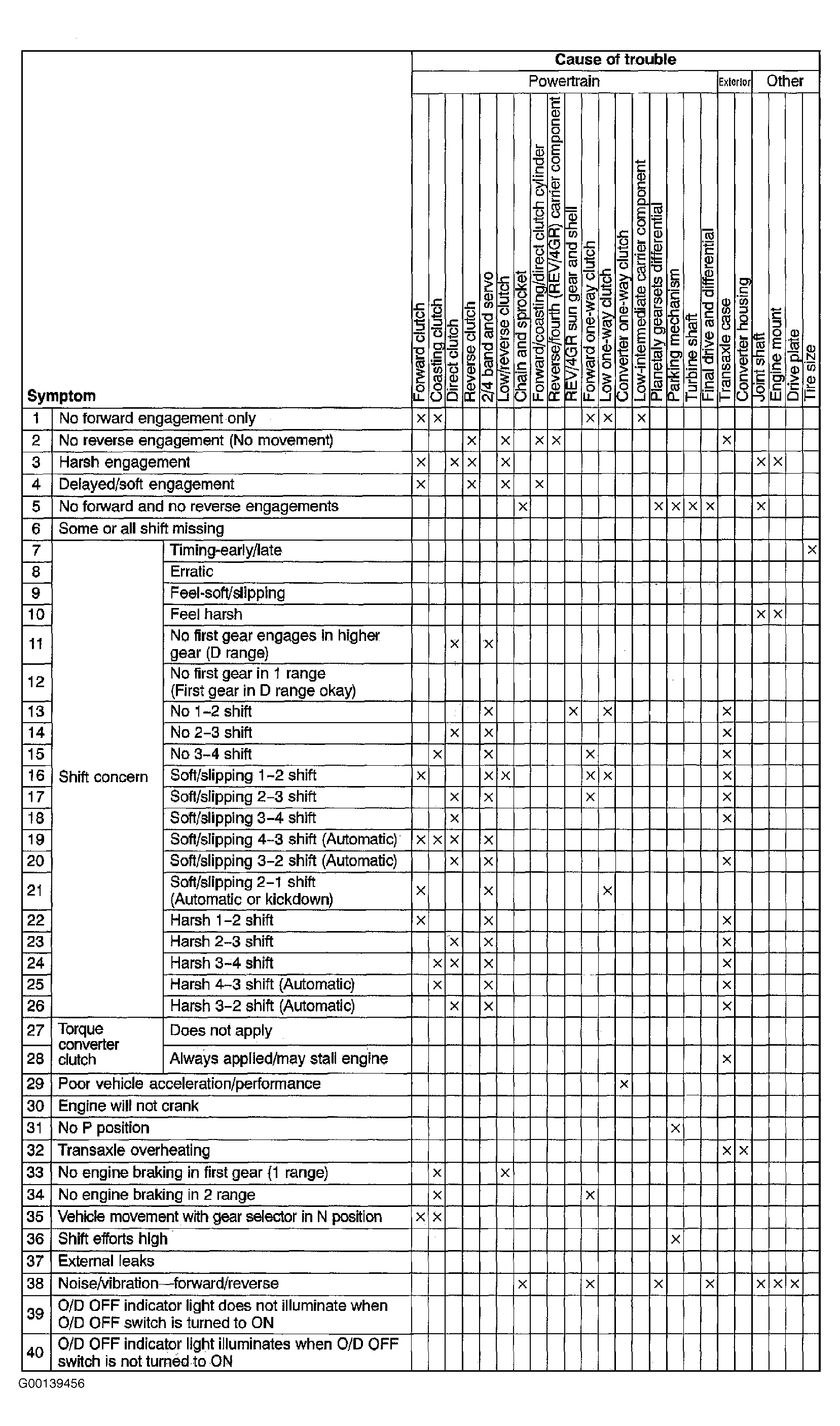

Fig 1: LA4A-EL Electronic Trouble Shooting Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

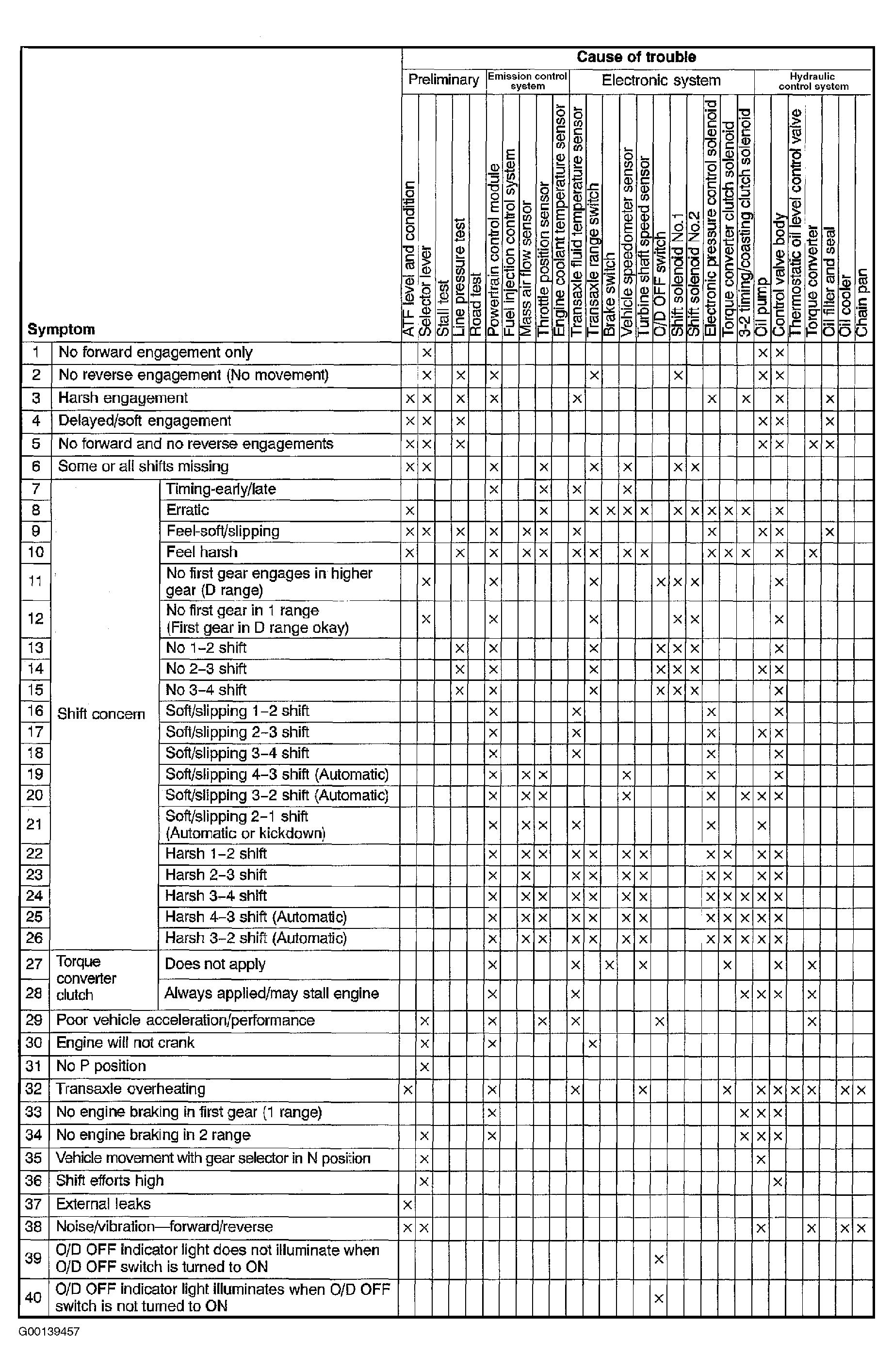

Fig 2: LA4A-EL Electronic Trouble Shooting Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
