Transaxle Drive Cycle Test: Notes
WARNING: This page is about a different car, the 2002 Mazda 626 and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The transaxle drive cycle test must be followed exactly. Malfunctions have to occur 4 times consecutively for continuous memory codes P0731, P0732, P0733 and P0734 to set, and 5 times consecutively for continuous memory codes P0742 and P1742 to set.
NOTE:

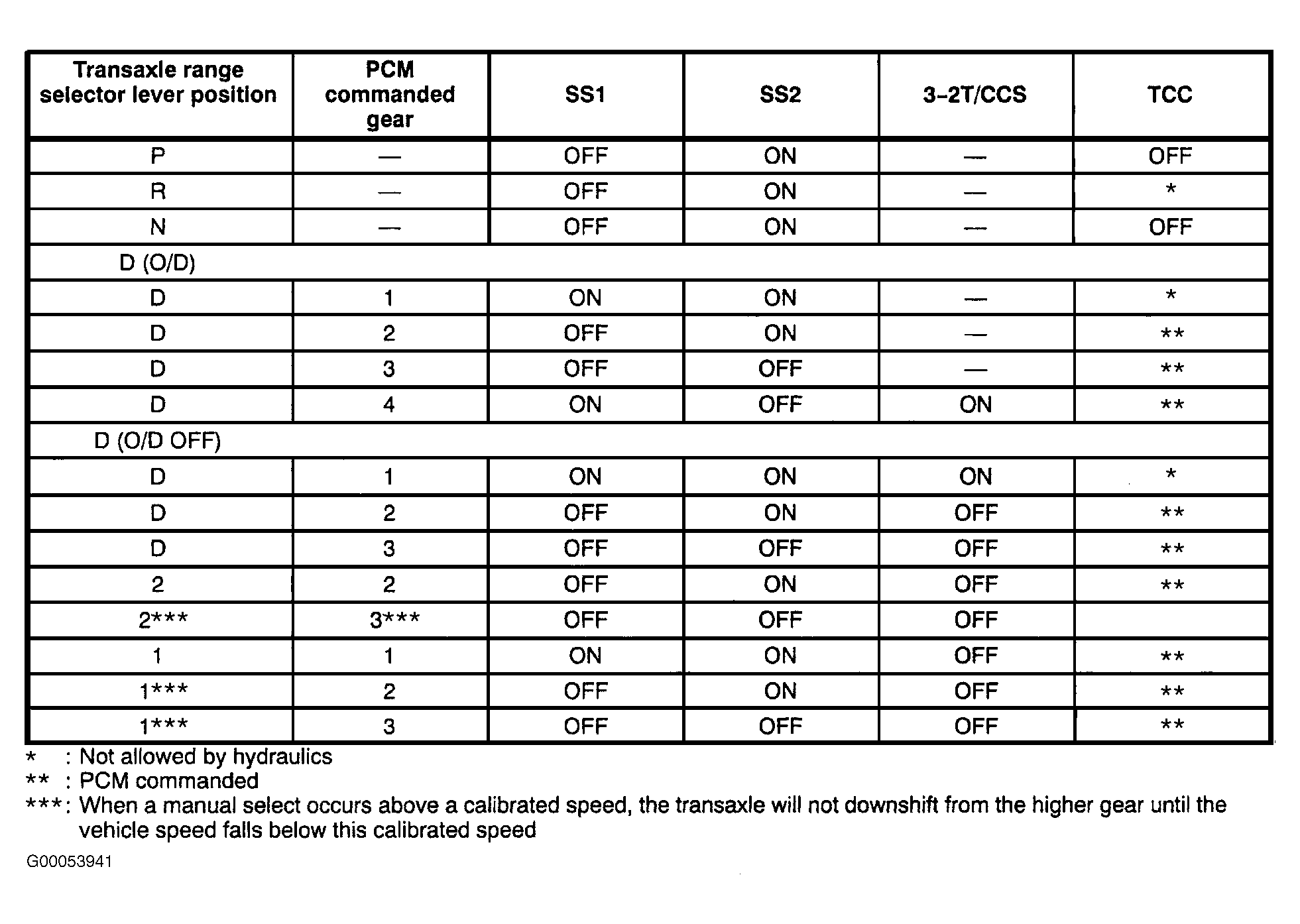

When performing transaxle drive cycle test, refer to Figure. See OUTPUT DEVICES under DESCRIPTION & OPERATION.
