Connector Identification

WARNING: This page is about a different car, the 2002 Mazda 626 and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: PCM Harness Connector Terminal Identification
G96F31315Courtesy of MAZDA MOTORS CORP.

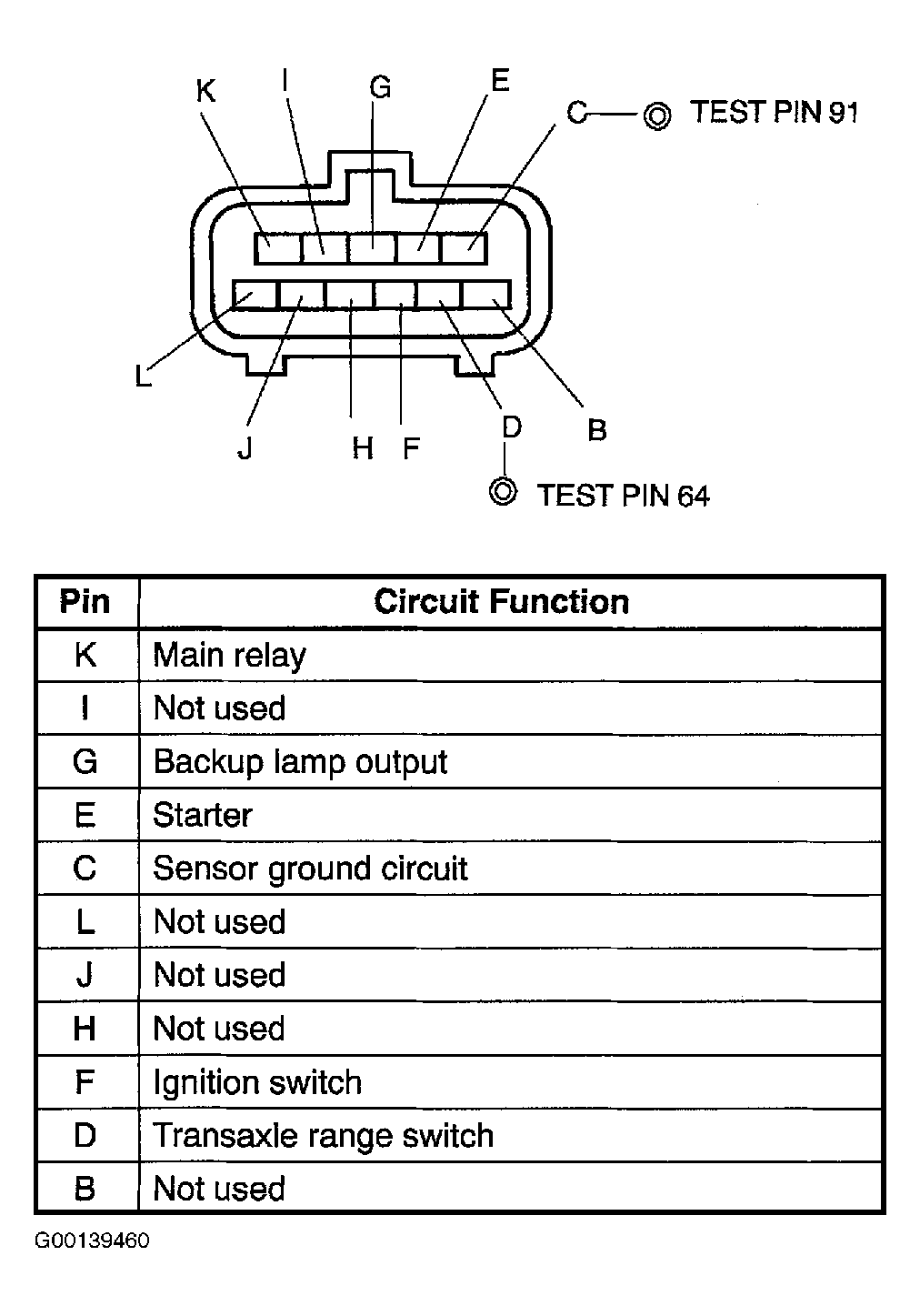

Fig 2: Identifying TR Switch Component Connector Terminals
G00139460Courtesy of MAZDA MOTORS CORP.
