Seat Weight Sensor Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If any of the following work is performed, perform the seat weight sensor inspection using the WDS or equivalent.
- Removal of the passenger-side seat
- Loosening and retightening of passenger's seat fixing bolts
- Or, the vehicle is involved in a collision
If any of the following work is performed, perform the seat weight sensor calibration using the WDS or equivalent. (See SEAT WEIGHT SENSOR CALIBRATION .)
- Replacement with a new seat weight sensor
- Replacement with a new seat weight sensor control module
- Replacement with new passenger-side seat parts
- Disassembly of the passenger-side seat

Have two 20 kg {44 lb} weights ready to use.
Connect the WDS or equivalent to the DLC-2 (16-pin).
Select "Body" from the menu.
Select "Restraints".
Select "Seat Weight Sensor ReZero Procedure".
Perform inspection following the procedures on the WDS or equivalent screen.

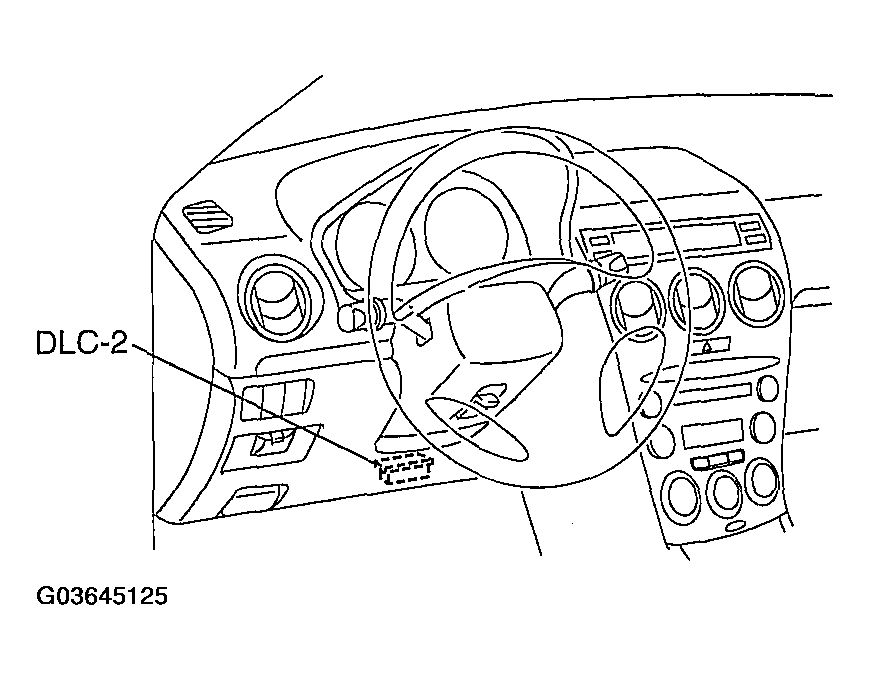

Fig 1: Locating DLC-2 (16-Pin) Connector
Courtesy of MAZDA MOTORS CORP.
