DTC Table
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- DTCs are common for present and past malfunction diagnosis.NOTE:
- When DTCs not shown in the DTC table are displayed, replace the SAS control module.
- If the air bag system warning light does not illuminate or remains illuminated when the ignition switch is turned to the ON position, inspect and repair the air bag system warning light circuitry and then confirm that the air bag system warning light is operational.
- The air bag system warning light will flash the DTC pattern for five cycles, and then it will remain illuminated until the ignition switch is turned to the LOCK position.

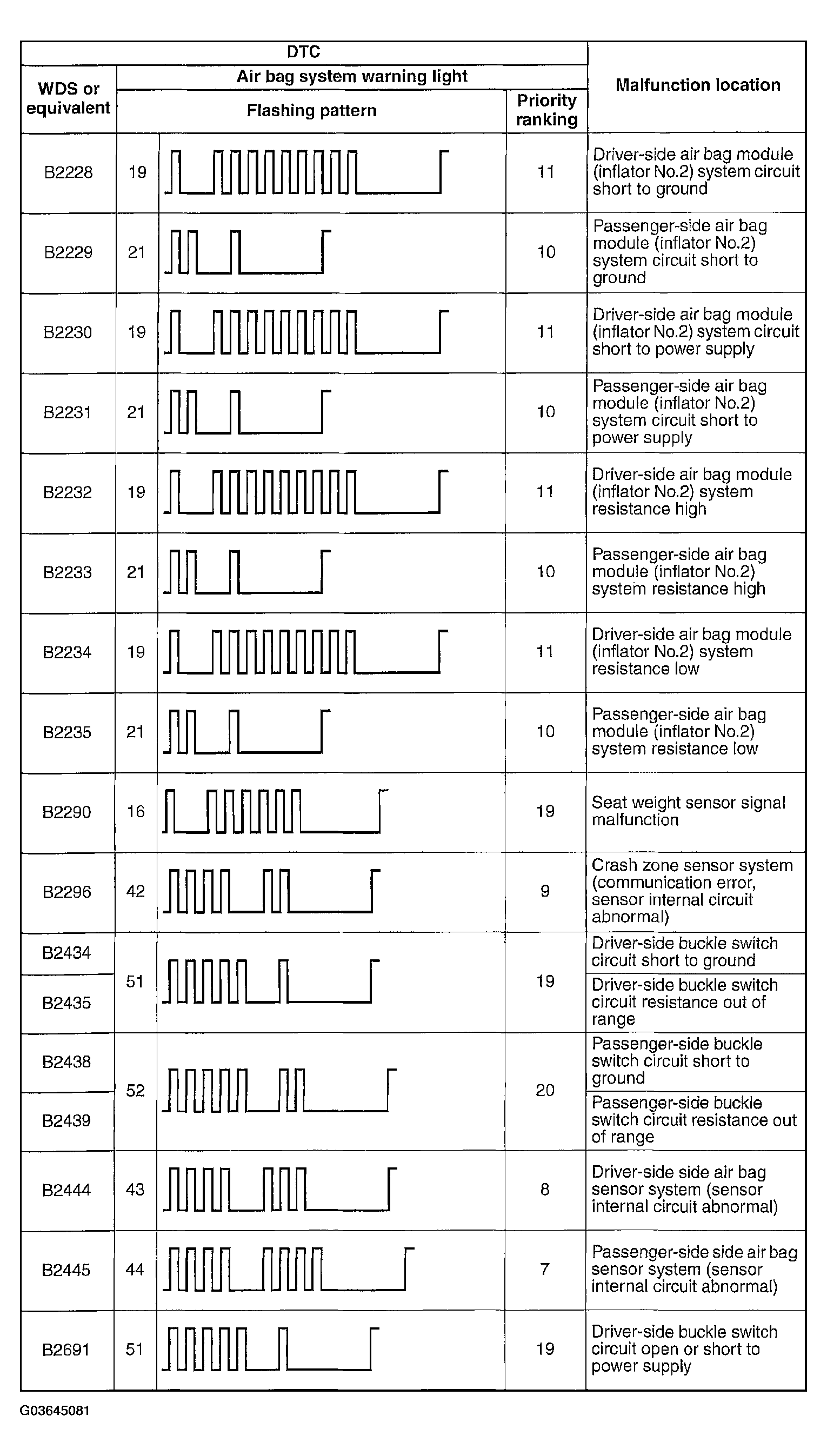

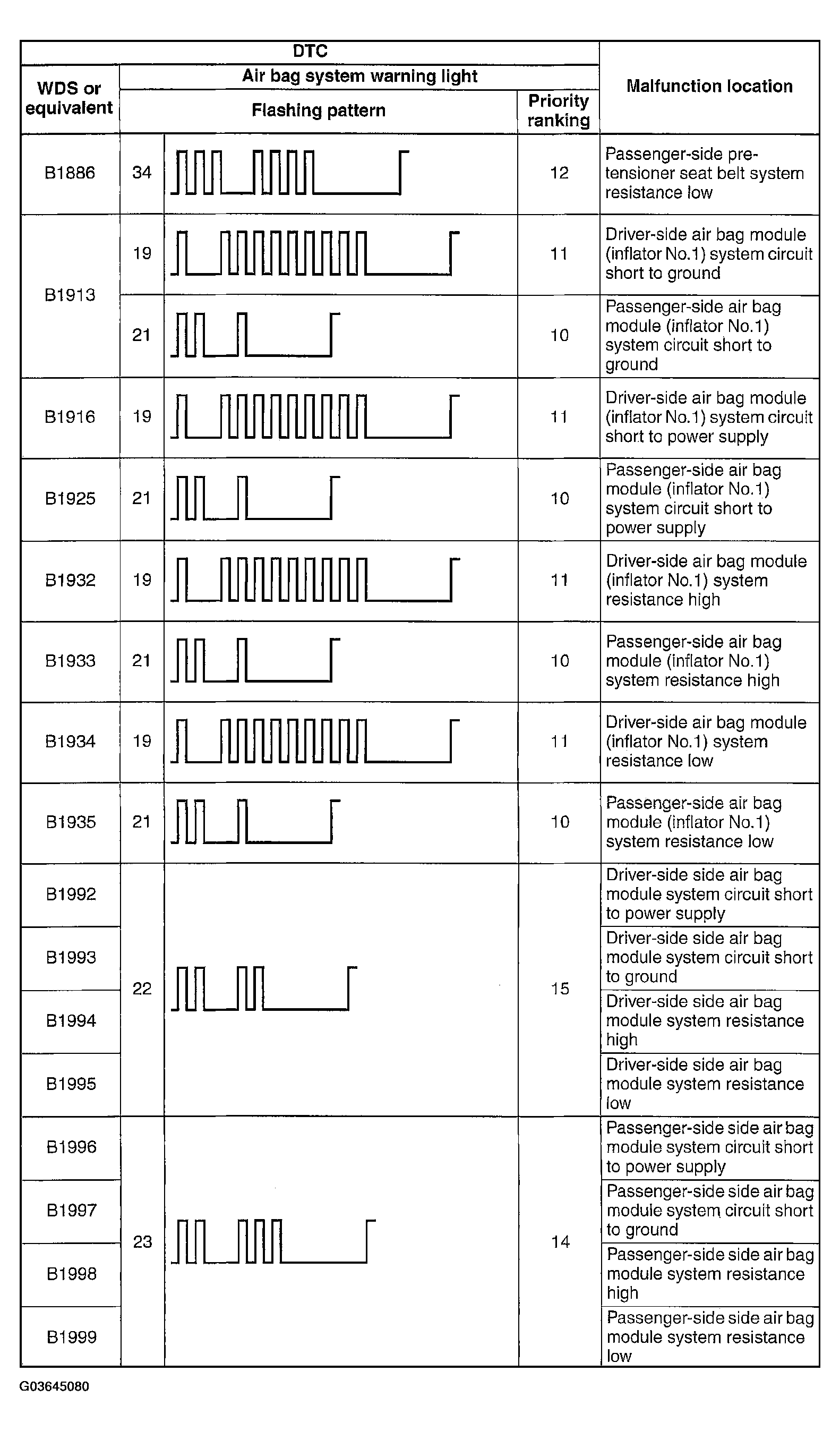

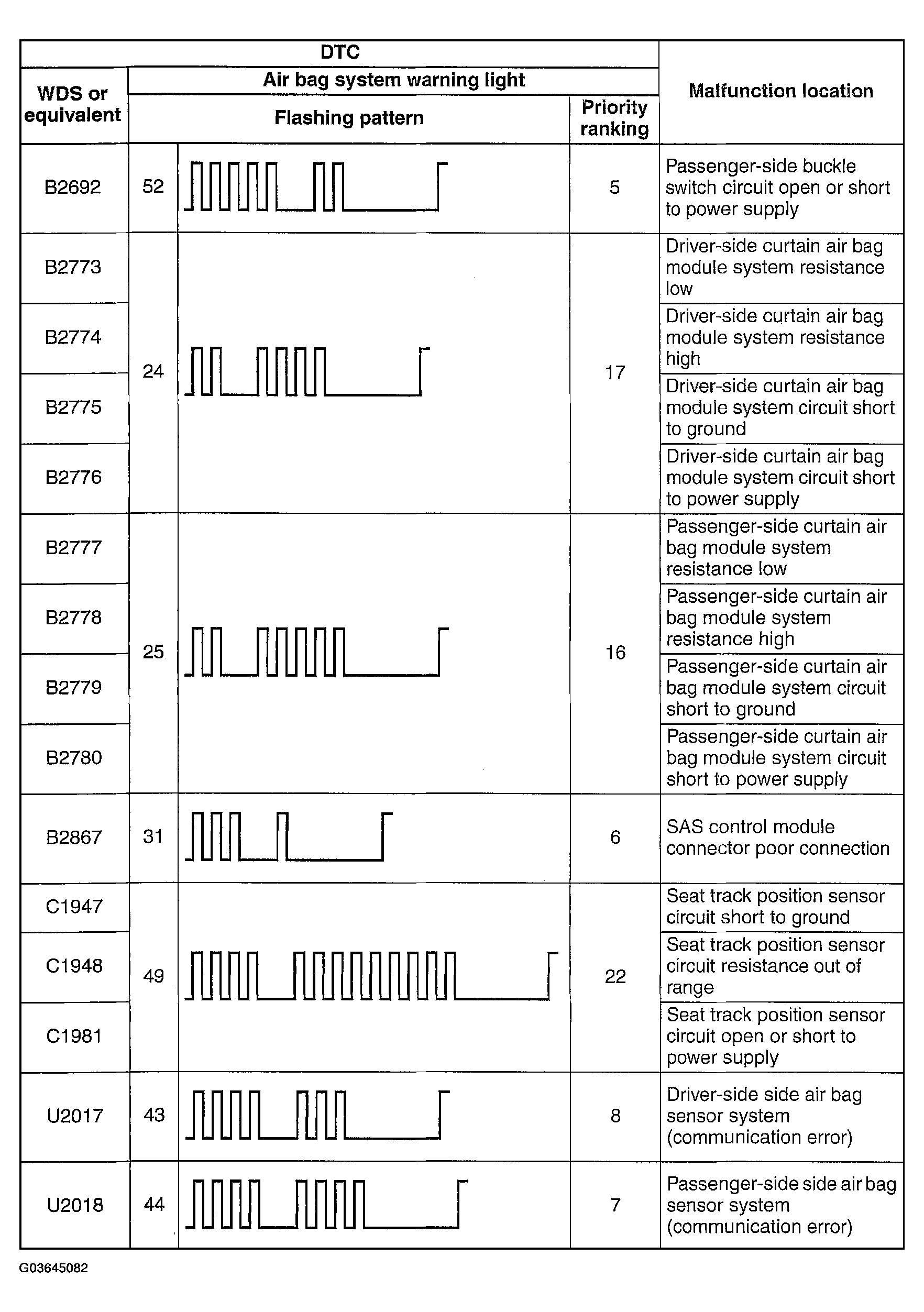

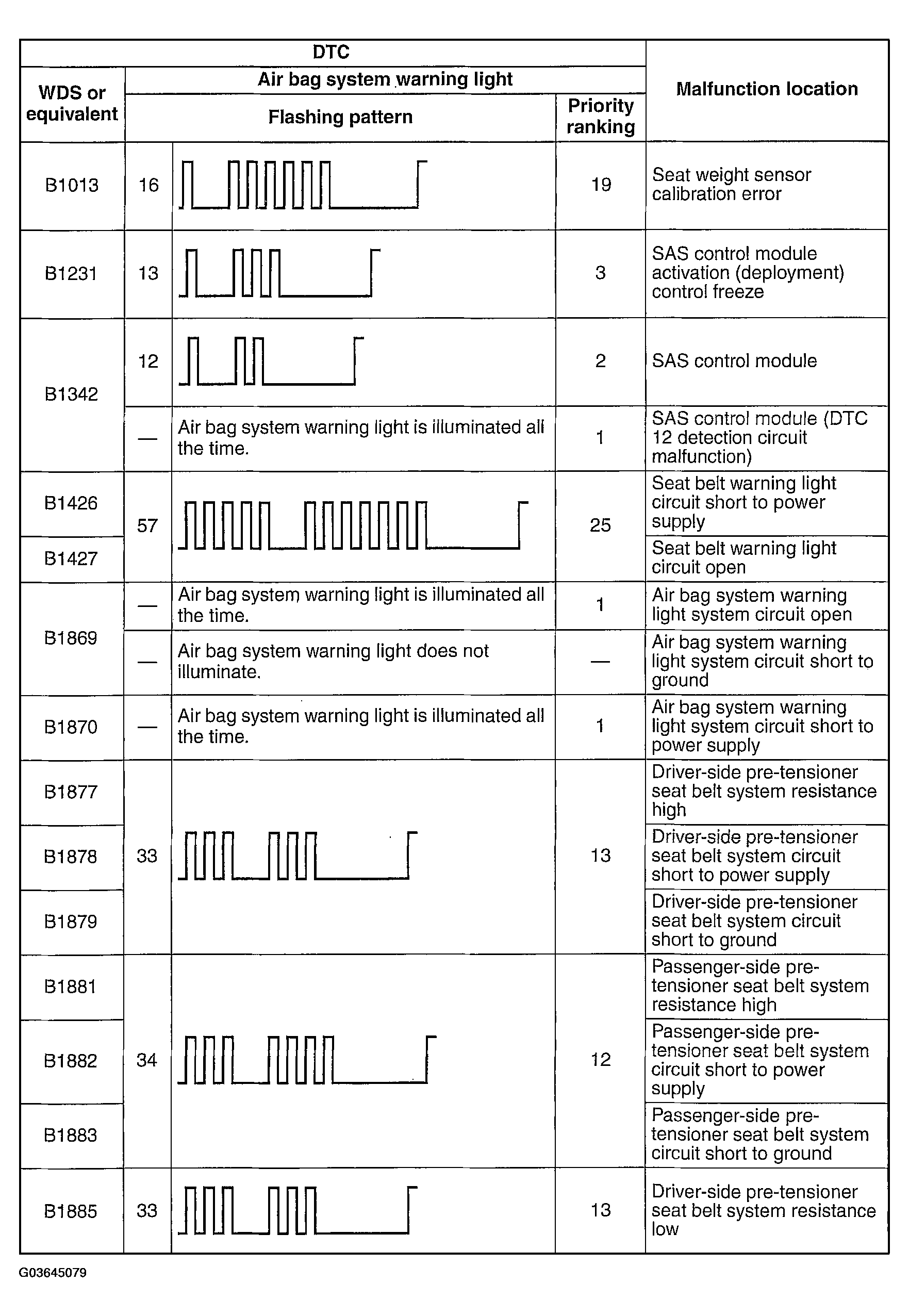

DTC TABLE
| DTC | Malfunction location | Go To |
|---|---|---|
| B1013 | Seat weight sensor calibration error | DTC B1013 |
| B1231 | SAS control module activation (deployment) control freeze | DTC B1231 |
| B1342 | SAS control module | DTC B1342 |
| B1342 | Air bag system warning light is illuminated all the time: SAS control module (DTC 12 detection circuit malfunction) | DTC B1342 |
| B1426 | Seat belt warning light short to power supply | DTC B1426, B1427 |
| B1427 | Seat belt warning light circuit open | DTC B1426, B1427 |
| B1869 | Air bag system warning light is illuminated all the time: Air bag system warning light system circuit open | DTC B1869, B1870 |
| B1869 | Air bag system warning light does not illuminate: Air bag system warning light system circuit short to ground | DTC B1869, B1870 |
| B1870 | Air bag system warning light system circuit short to power supply | DTC B1869, B1870 |
| B1877 | Driver-side pre-tensioner seat belt system resistance high | DTC B1877, B1878, B1879, B1885 |
| B1878 | Driver-side pre-tensioner seat belt system circuit short to power supply | DTC B1877, B1878, B1879, B1885 |
| B1879 | Driver-side pre-tensioner seat belt system circuit short to ground | DTC B1877, B1878, B1879, B1885 |
| B1881 | Passenger-side pre-tensioner seat belt system resistance high | DTC B1881, B1882, B1883, B1886 |
| B1882 | Passenger-side pre-tensioner seat belt system circuit short to power supply | DTC B1881, B1882, B1883, B1886 |
| B1883 | Passenger-side pre-tensioner seat belt system circuit short to ground | DTC B1881, B1882, B1883, B1886 |
| B1885 | Driver-side pre-tensioner seat belt system resistance low | DTC B1877, B1878, B1879, B1885 |
| B1886 | Passenger-side pre-tensioner seat belt system resistance low | DTC B1881, B1882, B1883, B1886 |
| B1913 | Driver-side air bag module (inflator No. 1) system circuit short to ground | DTC B1913, B1916, B1932, B1934 |
| B1913 | Passenger-side air bag module (inflator No. 1) system circuit short to ground | DTC B1913, B1925, B1933, B1935 |
| B1916 | Driver-side air bag module (inflator No. 1) system circuit short to power supply | DTC B1913, B1916, B1932, B1934 |
| B1925 | Passenger-side air bag module (inflator No. 1) system circuit short to power supply | DTC B1913, B1925, B1933, B1935 |
| B1932 | Driver-side air bag module (inflator No. 1) system resistance high | DTC B1913, B1916, B1932, B1934 |
| B1933 | Passenger-side air bag module (inflator No. 1) system resistance high | DTC B1913, B1925, B1933, B1935 |
| B1934 | Driver-side air bag module (inflator No. 1) system resistance low | DTC B1913, B1916, B1932, B1934 |
| B1935 | Passenger-side air bag module (inflator No. 1) system resistance low | DTC B1913, B1925, B1933, B1935 |
| B1992 | Driver-side side air bag module system circuit short to power supply | DTC B1992, B1993, B1994, B1995 |
| B1993 | Driver-side side air bag module system circuit short to ground | DTC B1992, B1993, B1994, B1995 |
| B1994 | Driver-side side air bag module system resistance high | DTC B1992, B1993, B1994, B1995 |
| B1995 | Driver-side side air bag module system resistance low | DTC B1992, B1993, B1994, B1995 |
| B1996 | Passenger-side side air bag module system circuit short to power supply | DTC B1996, B1997, B1998, B1999 |
| B1997 | Passenger-side side air bag module system circuit short to ground | DTC B1996, B1997, B1998, B1999 |
| B1998 | Passenger-side side air bag module system resistance high | DTC B1996, B1997, B1998, B1999 |
| B1999 | Passenger-side side air bag module system resistance low | DTC B1996, B1997, B1998, B1999 |
| B2228 | Driver-side air bag module (inflator No. 2) system circuit short to ground | DTC B2228, B2230, B2232, B2234 |
| B2229 | Passenger-side air bag module (inflator No. 2) system circuit short to ground | DTC B2229, B2231, B2233, B2235 |
| B2230 | Driver-side air bag module (inflator No. 2) system circuit short to power supply | DTC B2228, B2230, B2232, B2234 |
| B2231 | Passenger-side air bag module (inflator No. 2) system circuit short to power supply | DTC B2229, B2231, B2233, B2235 |
| B2232 | Driver-side air bag module (inflator No. 2) system resistance high | DTC B2228, B2230, B2232, B2234 |
| B2233 | Passenger-side air bag module (inflator No. 2) system resistance high | DTC B2229, B2231, B2233, B2235 |
| B2234 | Driver-side air bag module (inflator No. 2) system resistance low | DTC B2228, B2230, B2232, B2234 |
| B2235 | Passenger-side air bag module (inflator No. 2) system resistance low | DTC B2229, B2231, B2233, B2235 |
| B2290 | Seat weight sensor signal malfunction | DTC B2290 |
| B2296 | Crash zone sensor system (communication error, sensor internal circuit abnormal) | DTC B2296 |
| B2434 | Driver-side buckle switch circuit short to ground | DTC B2434, B2435, B2691 |
| B2435 | Driver-side buckle switch circuit resistance out of range | DTC B2434, B2435, B2691 |
| B2438 | Passenger-side buckle switch circuit short to ground | DTC B2438, B2439, B2692 |
| B2439 | Passenger-side buckle switch circuit resistance out of range | DTC B2438, B2439, B2692 |
| B2444 | Driver-side side air bag sensor system (sensor internal circuit abnormal) | DTC B2444, U2017 |
| B2445 | Passenger-side side air bag sensor system (sensor internal circuit abnormal) | DTC B2445, U2018 |
| B2691 | Driver-side buckle switch circuit open or short to power supply | DTC B2434, B2435, B2691 |
| B2692 | Passenger-side buckle switch circuit open or short to power supply | DTC B2438, B2439, B2692 |
| B2773 | Driver-side curtain air bag module system resistance low | DTC B2773, B2774, B2775, B2776 |
| B2774 | Driver-side curtain air bag module system resistance high | DTC B2773, B2774, B2775, B2776 |
| B2775 | Driver-side curtain air bag module system circuit short to ground | DTC B2773, B2774, B2775, B2776 |
| B2776 | Driver-side curtain air bag module system circuit short to power supply | DTC B2773, B2774, B2775, B2776 |
| B2777 | Passenger-side curtain air bag module system resistance low | DTC B2777, B2778, B2779, B2780 |
| B2778 | Passenger-side curtain air bag module system resistance high | DTC B2777, B2778, B2779, B2780 |
| B2779 | Passenger-side curtain air bag module system circuit short to ground | DTC B2777, B2778, B2779, B2780 |
| B2780 | Passenger-side curtain air bag module system circuit short to power supply | DTC B2777, B2778, B2779, B2780 |
| B2867 | SAS control module connector poor connection | DTC B2867 |
| C1947 | Seat track position sensor circuit short to ground | DTC C1947, C1948, C1981 |
| C1948 | Seat track position sensor circuit resistance out of range | DTC C1947, C1948, C1981 |
| C1981 | Seat track position sensor circuit open or short to power supply | DTC C1947, C1948, C1981 |
| U2017 | Driver-side side air bag sensor system (communication error) | DTC B2444, U2017 |
| U2018 | Passenger-side side air bag sensor system (communication error) | DTC B2445, U2018 |
