Rear Heat Duct Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn over the floor covering. (See FLOOR COVERING REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

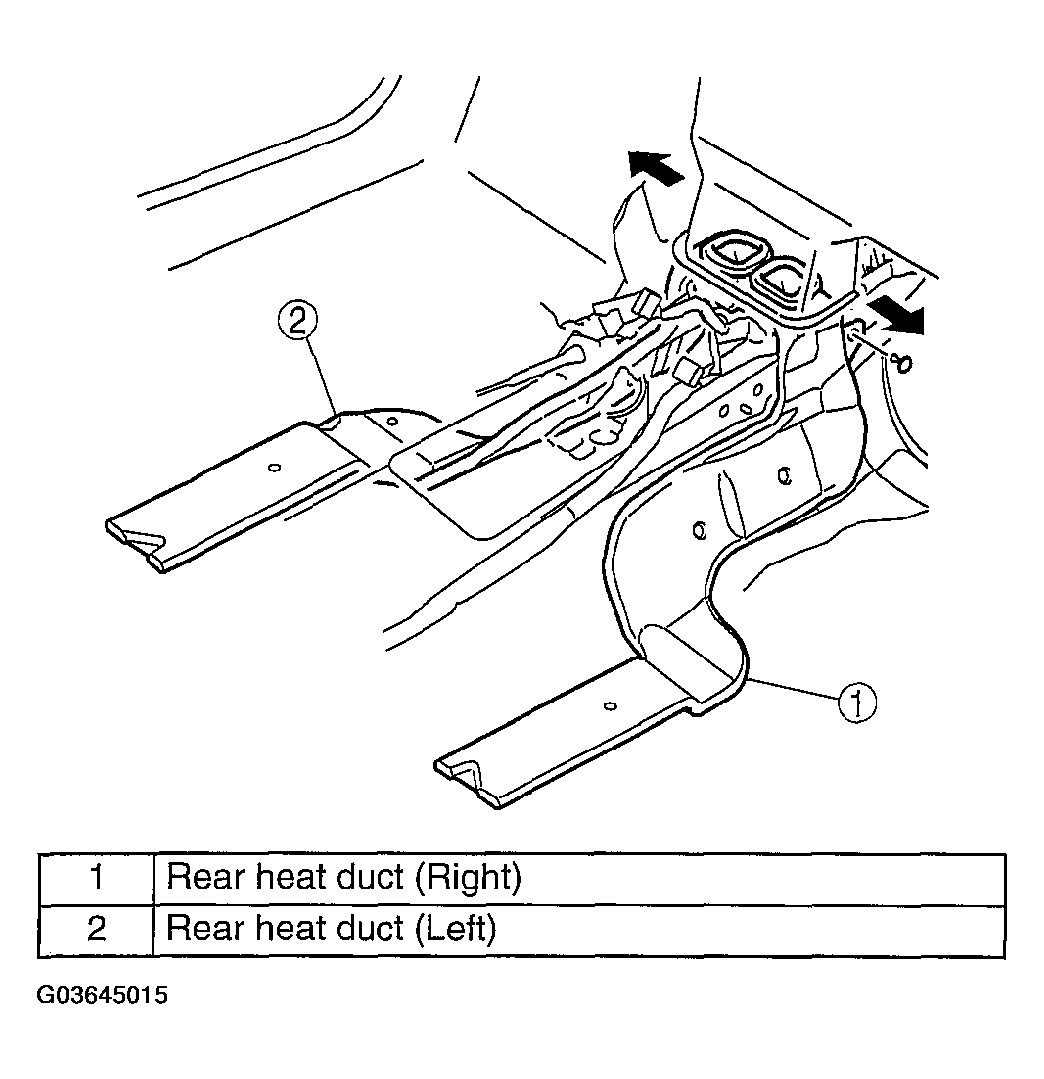

    Fig 1: Removing/Installing Of Rear Heat Duct
    G03645015Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
