Power Steering Oil Pump Removal/Installation [L3]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drive belt. (See DRIVE BELT REPLACEMENT [L3] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

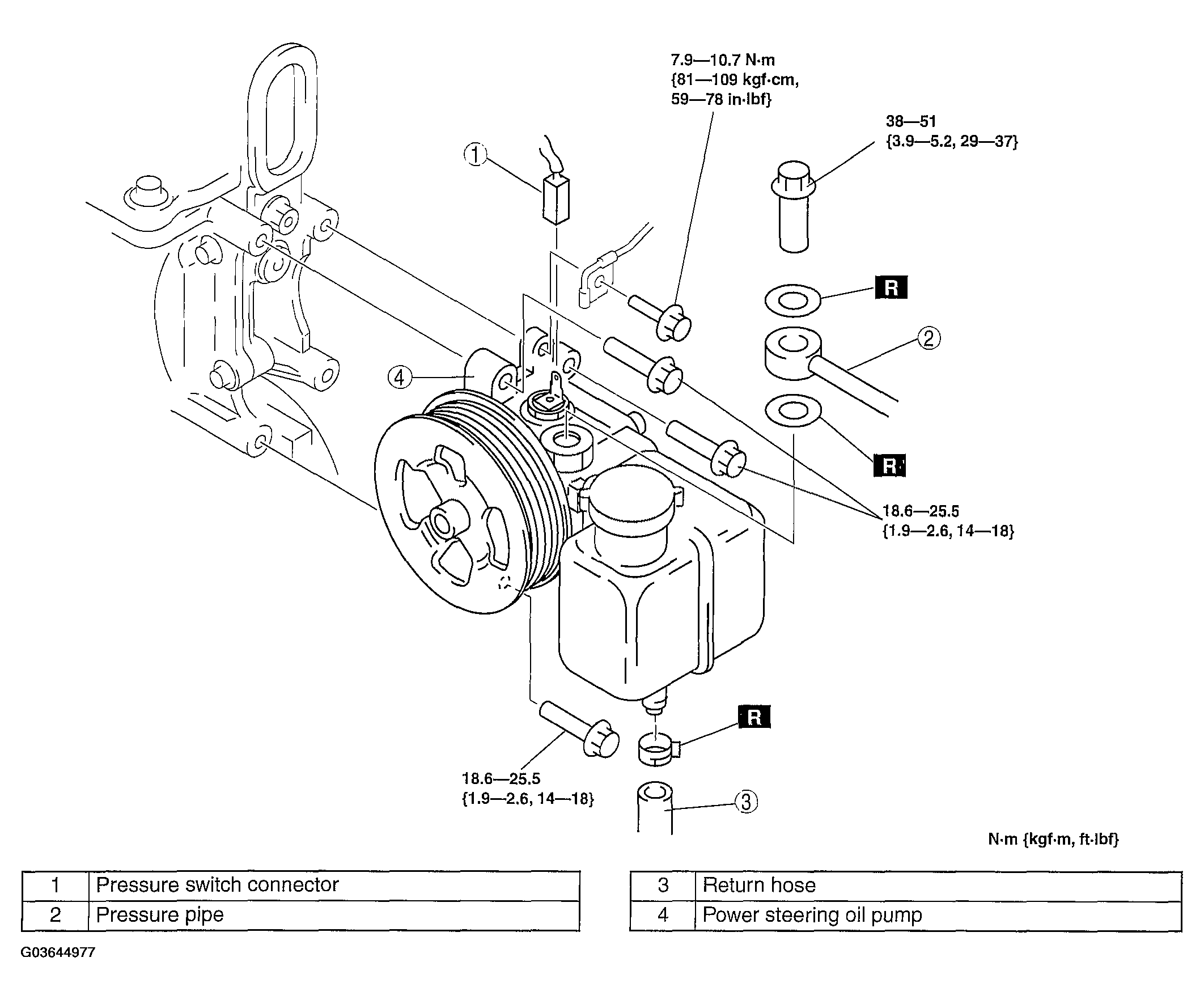

Fig 1: Removing/Installing Power Steering Oil Pump (L3)
Courtesy of MAZDA MOTORS CORP.
