Power Steering Oil Pump Removal/Installation [AJ]
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the splash shield (right side).
- Remove the under cover.
- Remove the front drive belt. (See DRIVE BELT REPLACEMENT [AJ] .)
- Remove the oil level gauge pipe.
- Remove the A/C compressor installation bolts.
- Remove the exhaust manifold (LH). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [AJ] .)

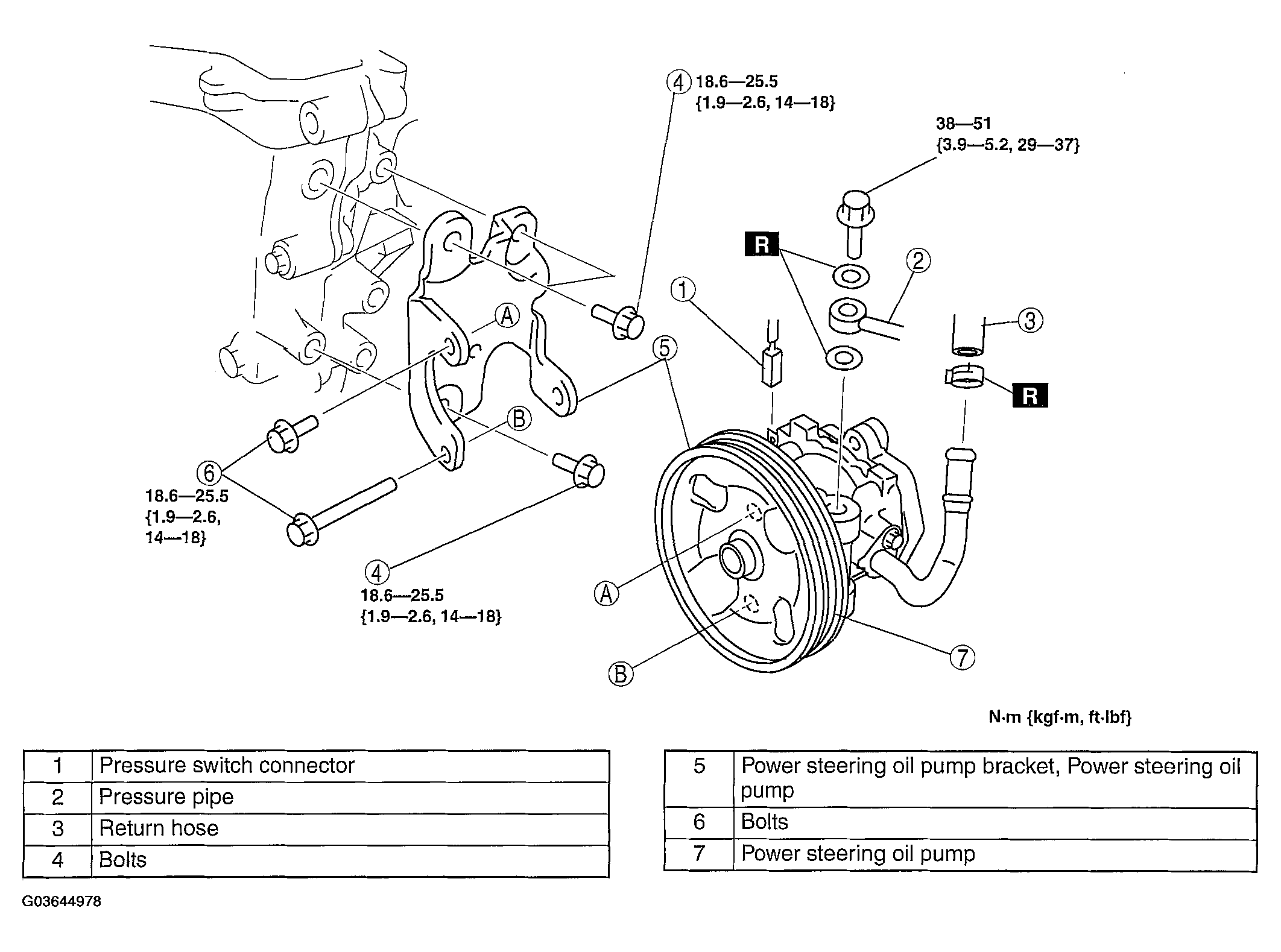

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
