Clip Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the clip tab using a screwdriver (-).
  2. Remove the clip pushing with a screwdriver (-) and a hammer as shown in the figure.

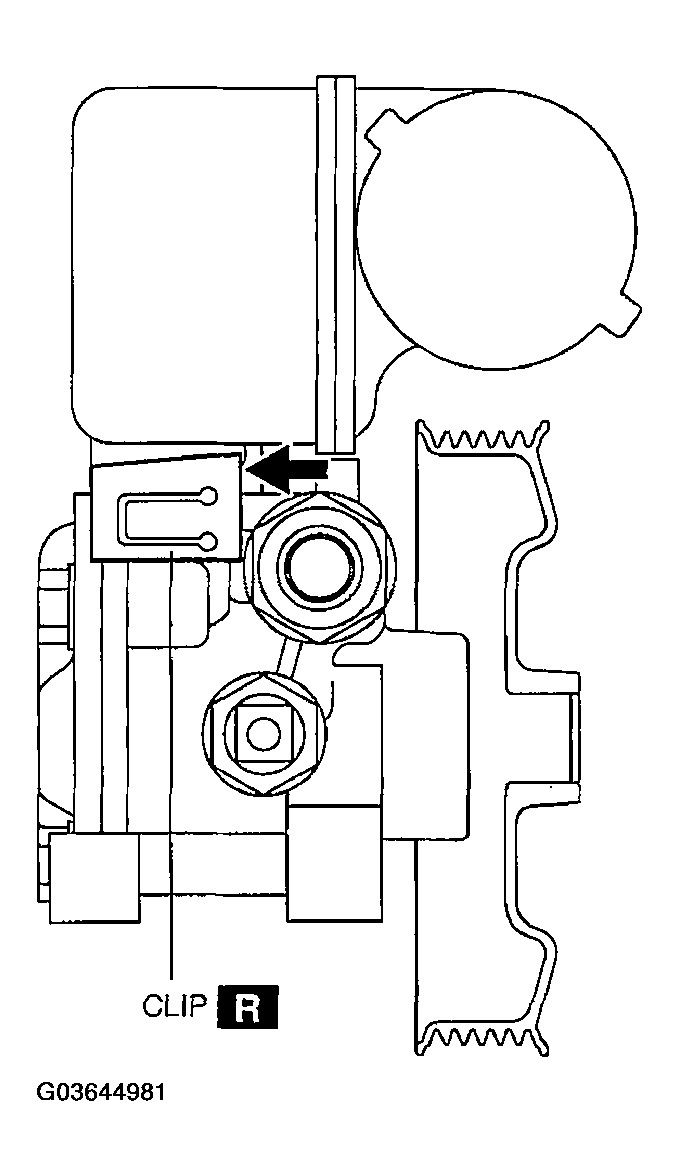

    Fig 1: Disassembling Clip
    G03644981Courtesy of MAZDA MOTORS CORP.
