Power Steering Oil Pump Disassembly/Assembly [AJ]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

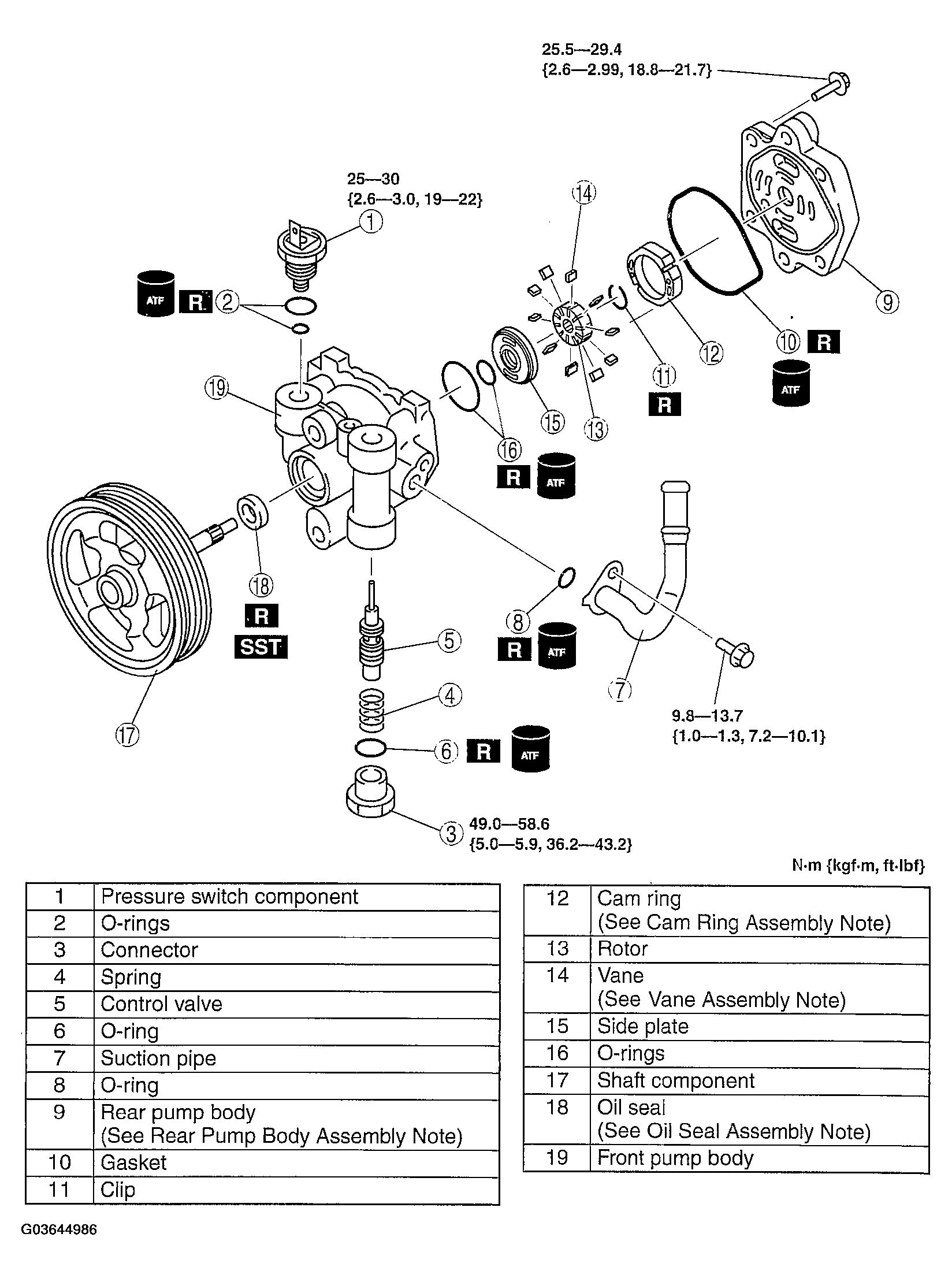

Fig 1: Disassembling/Assembling Power Steering Oil Pump (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
