Selector Cable Adjustment

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console.
  2. Shift the selector lever to P position.
  3. Unlock the lock piece of the selector cable (selector lever side) in the order shown in the figure.
    Fig 1: Unlocking Lock Piece
    G03644897Courtesy of MAZDA MOTORS CORP.
  4. Verify that the manual shaft is in P position.
  5. Lock the lock piece of the selector cable (selector lever side) in the order shown in the figure.

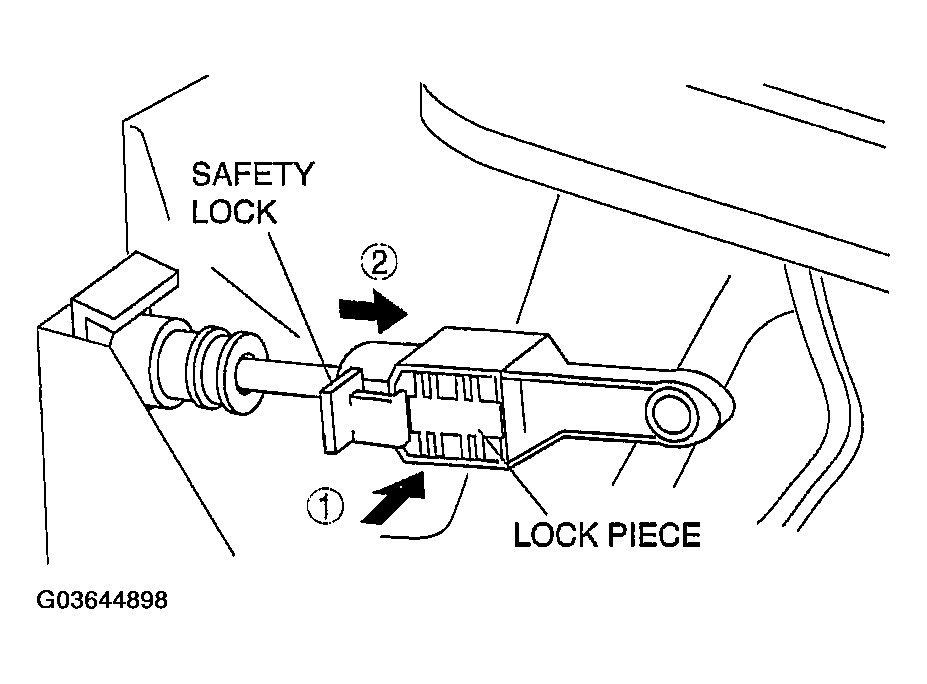

    Fig 2: Locking Lock Piece
    G03644898Courtesy of MAZDA MOTORS CORP.
  6. Install the center console.
  7. Shift the selector lever from P position to M range, and make sure that there are no other components in that area to interfere with the lever.
