Clutch & Band Application

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2005 Mazda 6, 2005 Mazda 3, 2004 Mazda 6, 2004 Mazda 3, and 2003 Mazda Protege5. However, it is still accessible from the selected car via links, so may be relevant.

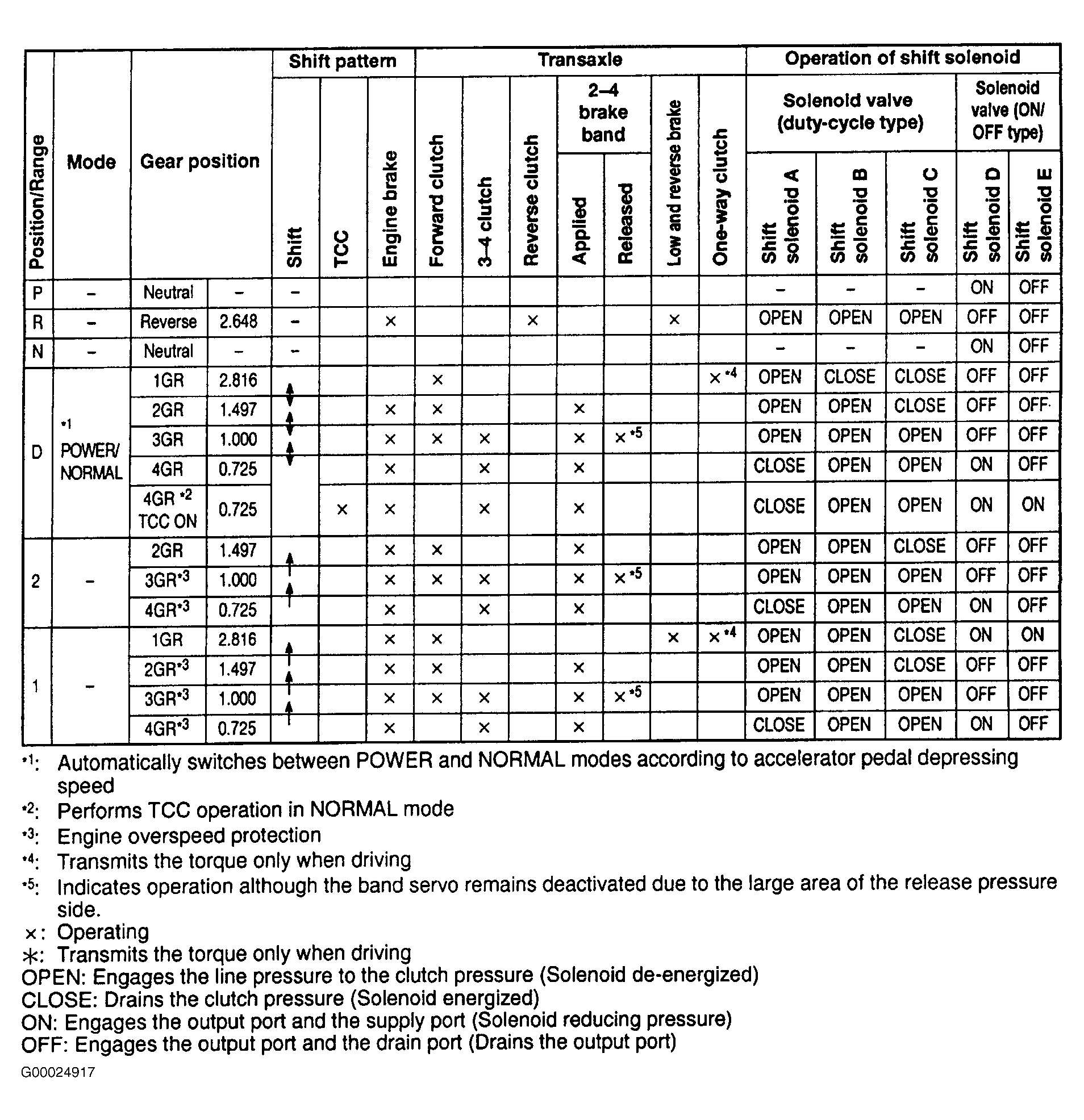

Fig 1: Clutch & Band Application Table
G00024917Courtesy of MAZDA MOTORS CORP.
