Oil Pump: Inspection

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2005 Mazda 6, 2005 Mazda 3, 2004 Mazda 6, 2004 Mazda 3, and 2003 Mazda Protege5. However, it is still accessible from the selected car via links, so may be relevant.

Check oil pump for broken or worn seal ring or weak springs. Check for damaged or worn sliding surfaces. Replace as required.

Measure clearance between end of oil pump housing and each rotor at 4 places along circumference. See Fig 1. Measure clearance between inner and outer rotor. See Fig 2. If clearances are not within specifications, replace oil pump. See OIL PUMP SPECIFICATIONS table.

OIL PUMP SPECIFICATIONS

Application	In. (mm)
Rotor-To-Housing Clearance	.0015-.0019 (.038-.048)
Inner-To-Outer Rotor Clearance	.0008-.0051 (.020-.130)

Fig 1: Measuring Oil Pump Housing-To-Rotor Clearance

Courtesy of MAZDA MOTORS CORP.

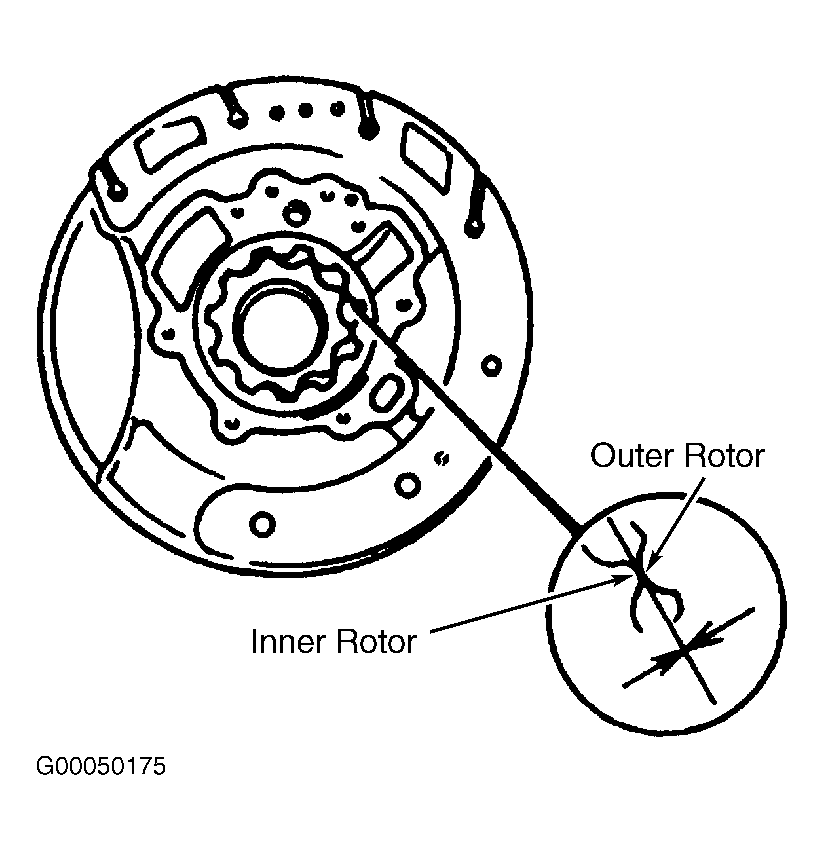

Fig 2: Measuring Inner Rotor-To-Outer Rotor Clearance

Courtesy of MAZDA MOTORS CORP.
