Oil Pump: Disassembly
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2005 Mazda 6, 2005 Mazda 3, 2004 Mazda 6, 2004 Mazda 3, and 2003 Mazda Protege5. However, it is still accessible from the selected car via links, so may be relevant.

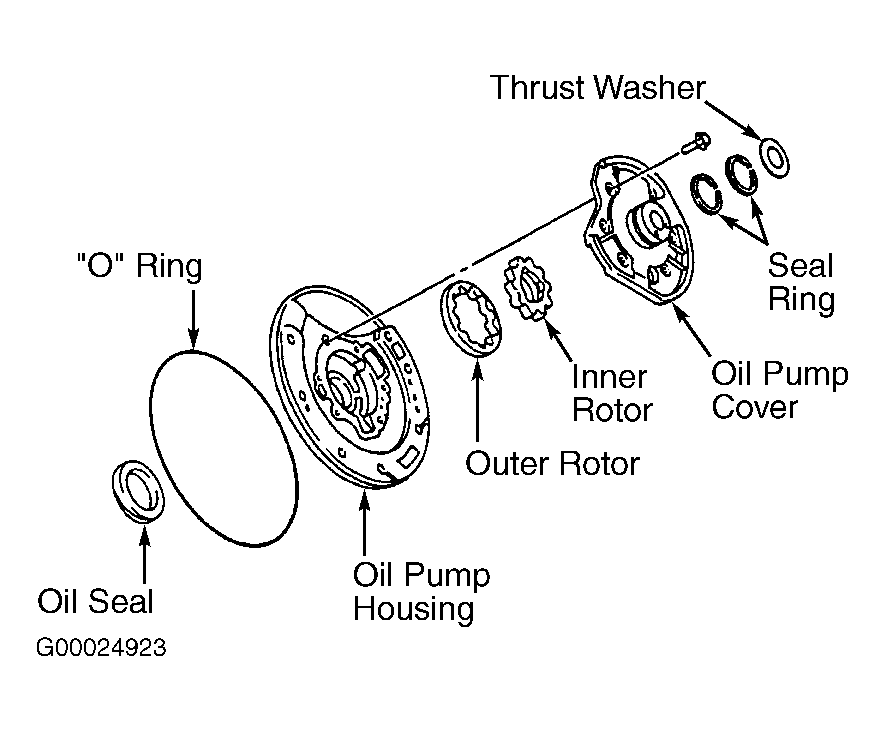

Remove thrust washer, seal rings and "O" ring. See Fig 1. Loosen and remove oil pump cover mounting bolts in a crisscross pattern. See Fig 2. Remove inner and outer rotors. Mark rotors for reassembly reference. Remove oil seal and oil pump housing.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
