Vehicle condition

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off)

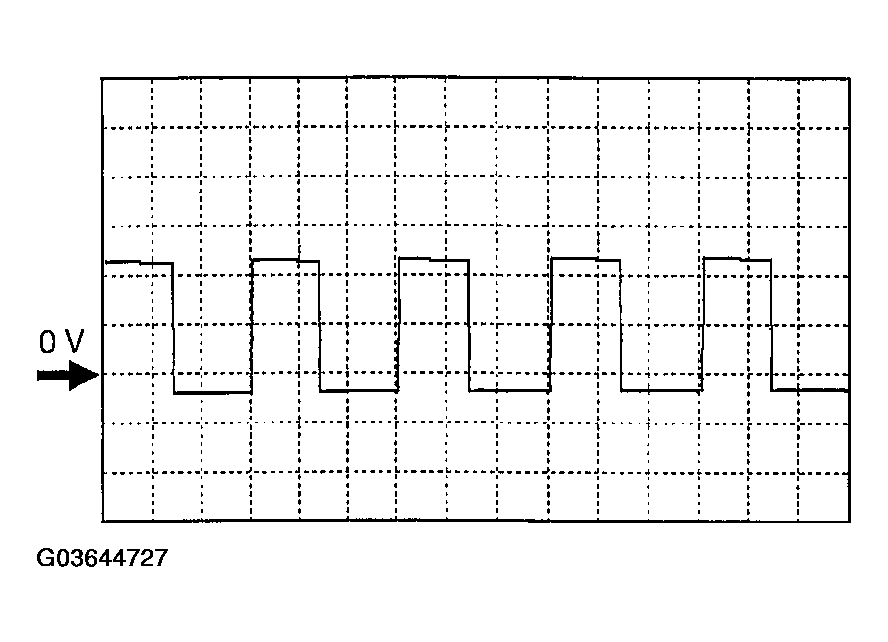

Fig 1: Identifying Pressure Control Solenoid Pattern (+)
Courtesy of MAZDA MOTORS CORP.
