Transaxle Oil Inspection
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Park the vehicle on level ground.

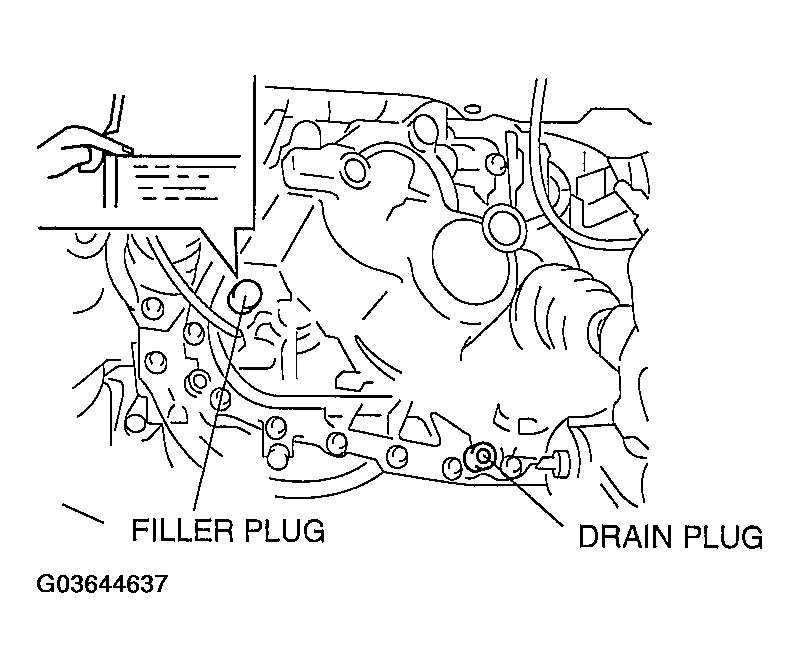

- Remove the filler plug and gasket.
- Verify that the oil is near the brim of the plug port.
- If the oil level is low, add the specified amount and type of oil through the filler plug hole.
Specified oil grade
API Service GL-4 or GL-5
Specified oil viscosity
SAE 75W-90
- Install a new gasket and the filler plug.
Tightening torque
30.0-39.0 N.m
{3.1-3.9 kgf.m, 22.1-28.8 in.lbf}
