Reverse Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the reverse switch connector.

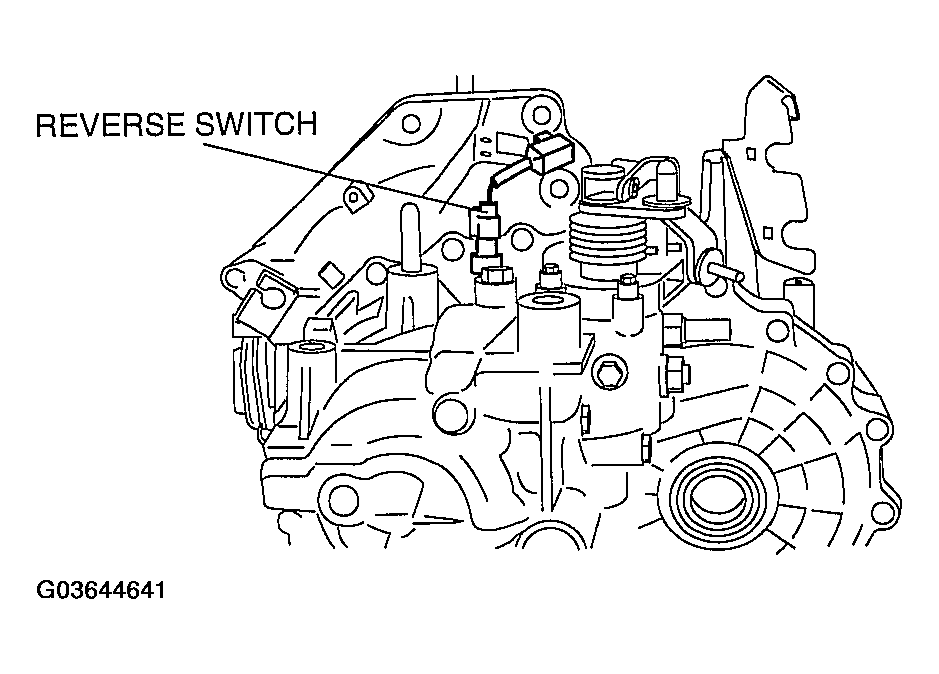

Fig 1: Locating Reverse Switch Connector
Courtesy of MAZDA MOTORS CORP.
Shift the shift lever to each position, and inspect for continuity between terminals A and B.

Fig 2: Identifying Reverse Switch Connector
Courtesy of MAZDA MOTORS CORP.
- If not as specified, replace the reverse switch.
  (See REVERSE SWITCH REMOVAL/INSTALLATION .)

  Specification

  Fig 3: Continuity Table
  Courtesy of MAZDA MOTORS CORP.
Connect the reverse switch connector.
