No. 1 Engine Mount Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dynamic chamber. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION .)
  2. Install the SST  to cylinder head.

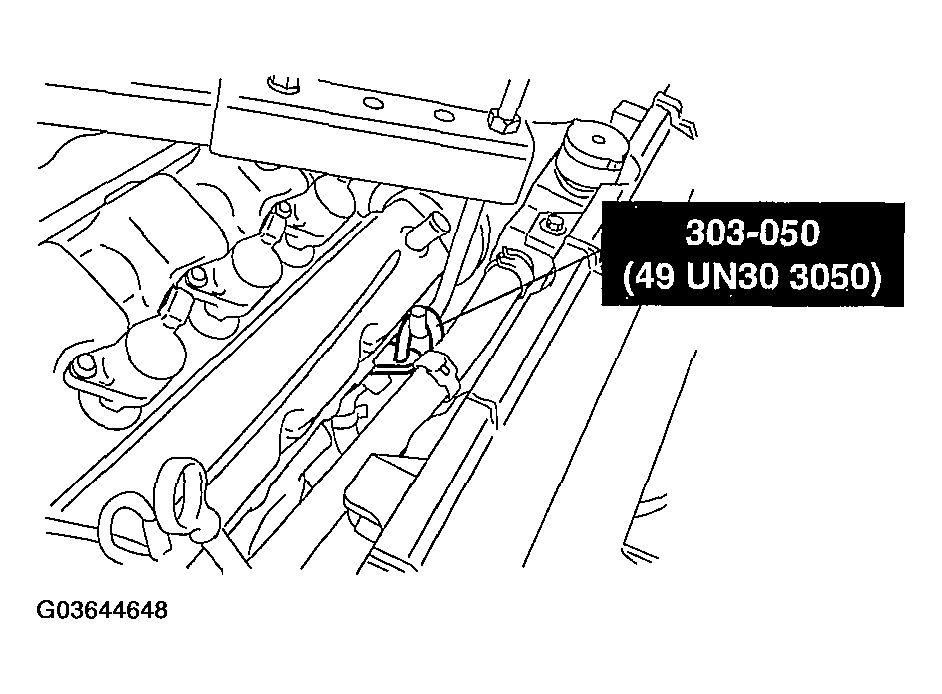

    Fig 1: Installing SST To Cylinder Head
    G03644648Courtesy of MAZDA MOTORS CORP.
  3. Support the engine the SSTs  before removing the No. 1 engine mount.
    Fig 2: Supporting Engine
    G03644649Courtesy of MAZDA MOTORS CORP.
  4. Remove the No. 1 engine mount.
