Manual Transaxle Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the stud of the No. 4 engine mount.

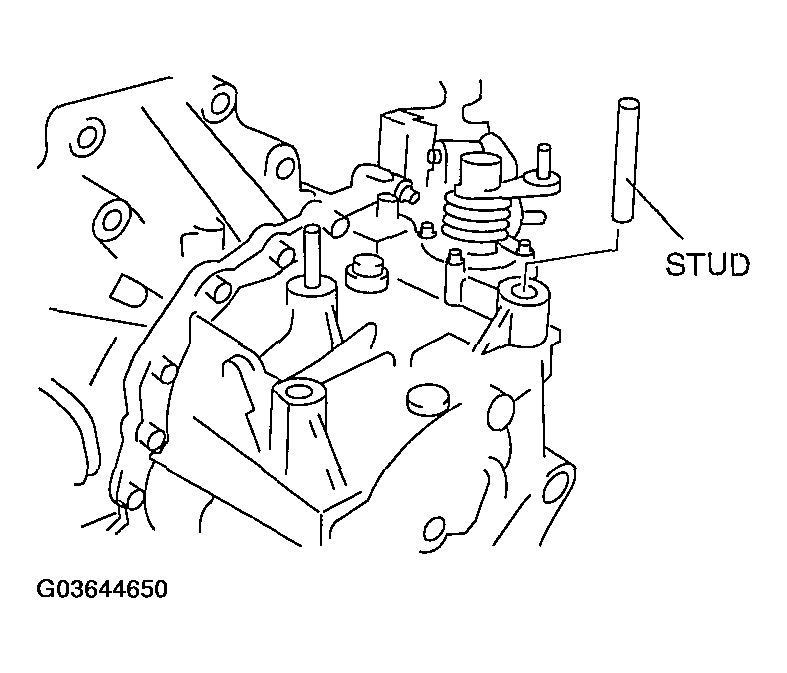

Fig 1: Removing Stud Of No. 4 Engine Mount
Courtesy of MAZDA MOTORS CORP.
Loosen the SST (49 E017 5A0) and lean the engine toward the transaxle.
Support the transaxle on a jack.

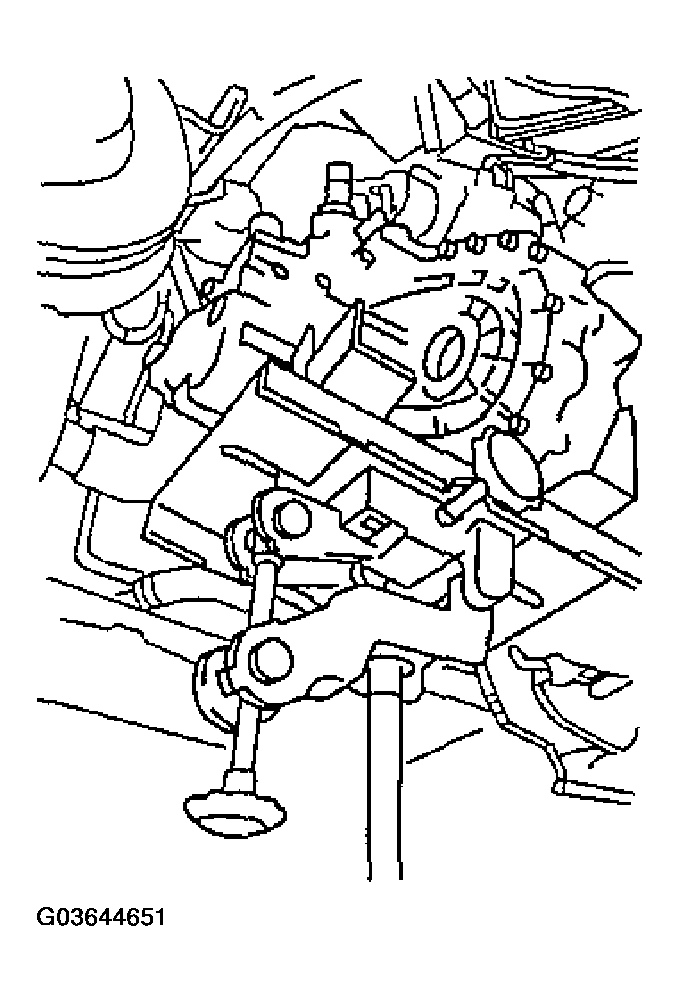

Fig 2: Supporting Transaxle On A Jack
Courtesy of MAZDA MOTORS CORP.
Remove the transaxle mounting bolts.
Remove the transaxle.
