Transaxle Oil Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Park the vehicle on level ground.
Remove the oil level plug and washer.
Verify that the oil is near the brim of the plug port.
- If the oil level is lower than the low level, add the specified amount and type of oil through the oil level plug hole.
  Specified oil grade

  API Service GL-4 or GL-5

  Specified oil viscosity

  All-season: SAE 75W-90

  Above 10 °C {50 °F}: SAE 80W-90

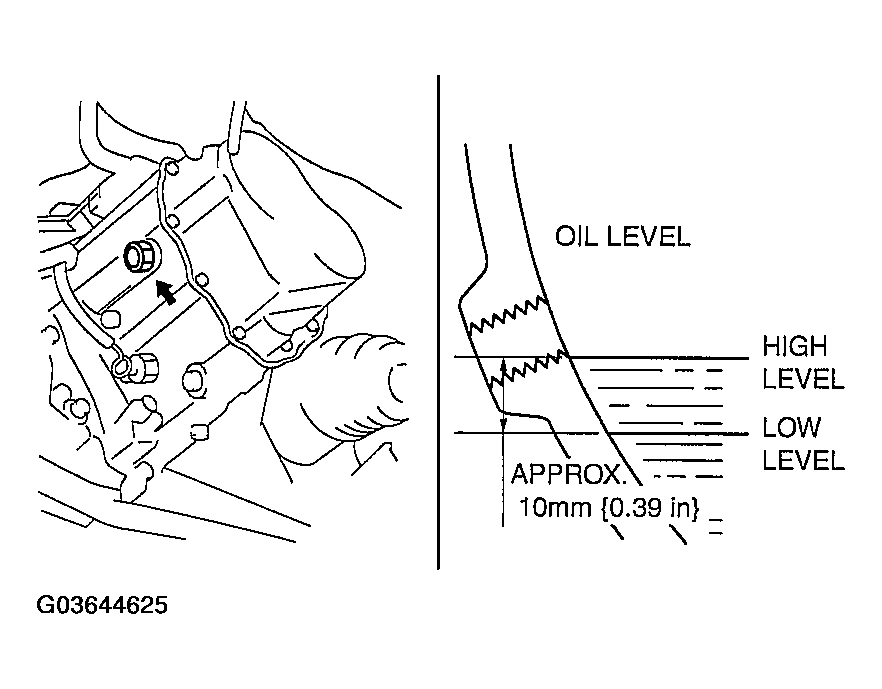

  Fig 1: Removing Oil Level Plug And Washer
  Courtesy of MAZDA MOTORS CORP.
Install a new washer and the oil level plug.
Tightening torque

39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}
