Manual Transaxle Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the battery and battery tray.
  3. Remove the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Remove the wheels, tires and splash shields.
  5. Remove the under cover.
  6. Remove the steering gear and linkage, and pipe assembly installation bolts from the front crossmember, then suspend the steering gear and linkage with a cable. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION [L3] .)

    Pipe assembly tightening torque

    7.8-10.8 N.m {79.6-110.0 kgf.cm, 69.1-95.5 in.lbf}

  7. Drain the transaxle oil into a suitable container.
    WARNING:
    • Improperly jacking a transaxle is dangerous. It can slip off the jack and may cause serious injury.
  8. Remove in the order indicated in the table.

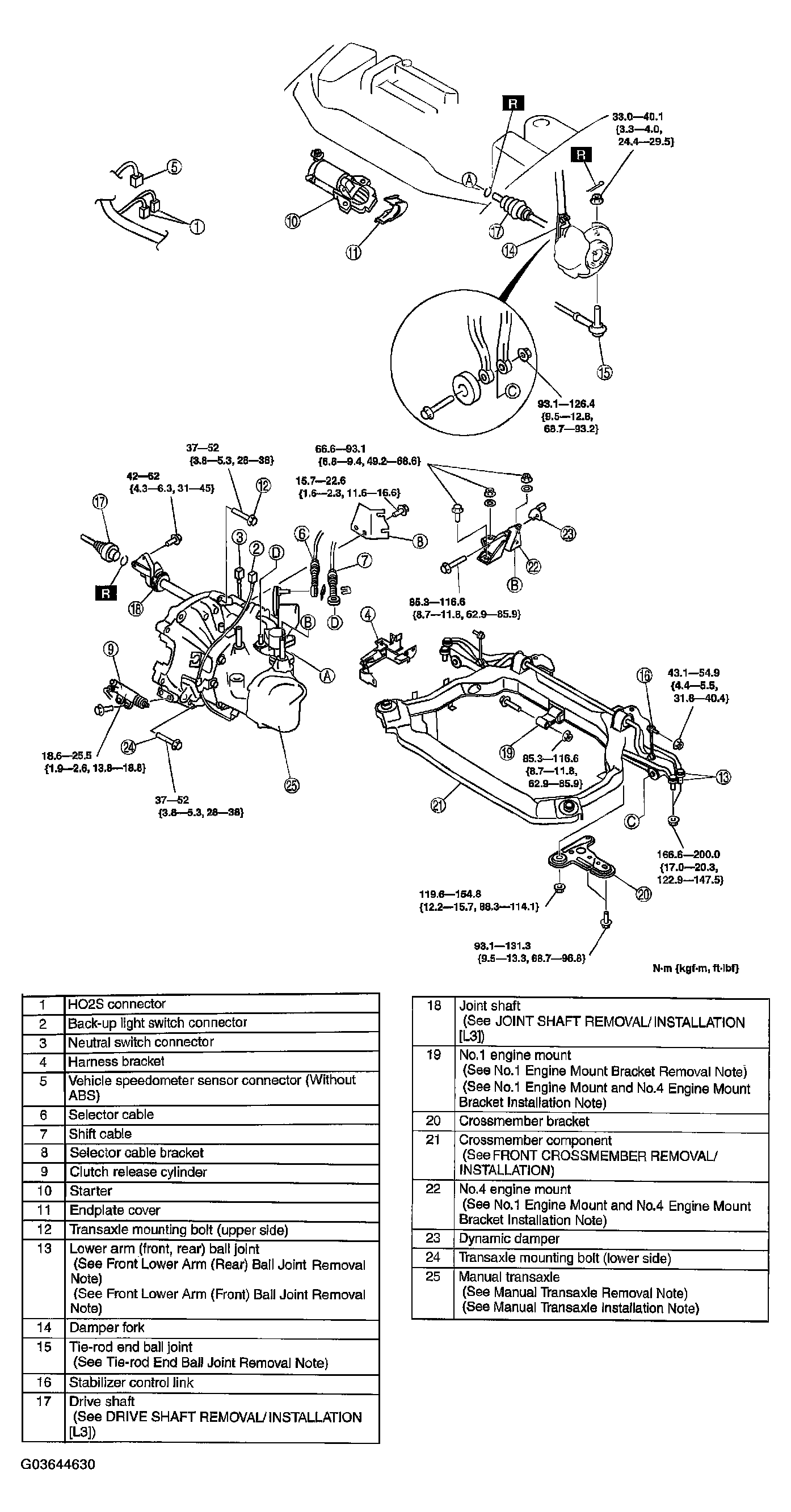

    Fig 1: Manual Transaxle Removal Sequence (Torque Specs)
    G03644630Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
  10. Add the specified amount of specified transaxle oil.
  11. Warm up the engine and transaxle, inspect for oil leakage, and inspect the transaxle operation.
